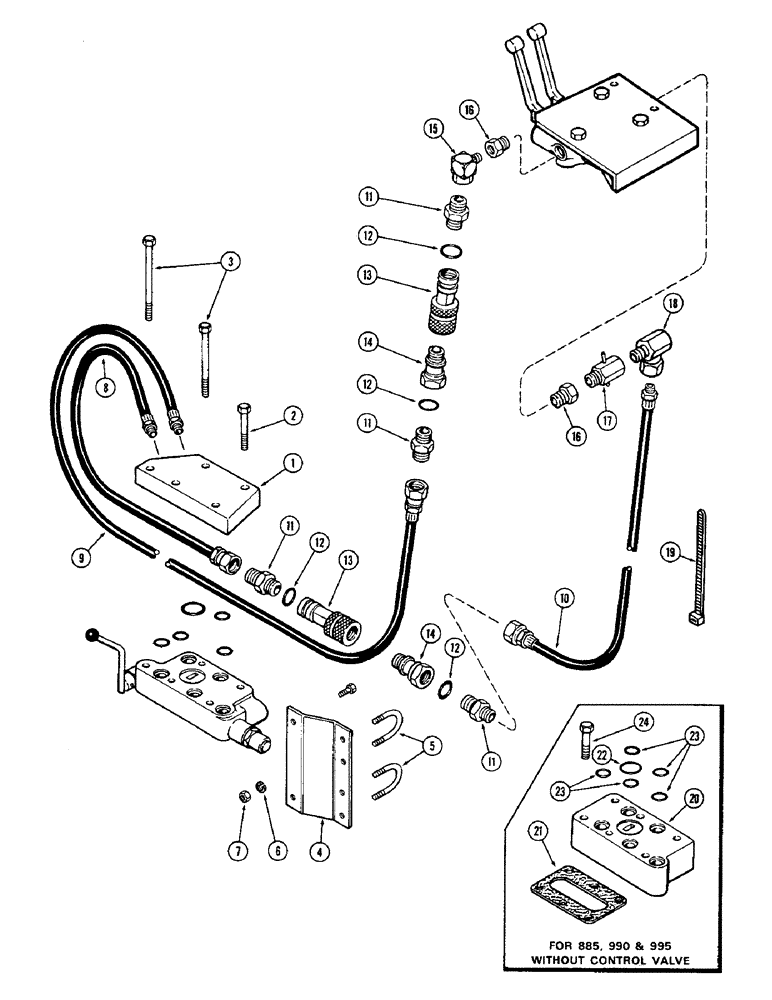

Запчасти Case IH 60 (16) - POWER BEYOND, 380GP, 885, 990, 995, 1210 AND 1212 TRACTORS (35) - HYDRAULIC SYSTEMS

1

T55222

PLATE

- power beyond manifold

1шт.

2

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

3

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

3шт.

3

113-2239

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

- 3/8 x 5-3/4" NC hex (Grade 5) Used with 1210 and 1212 tractors with twin pumps

3шт.

4

T55223

BRACKET

- fender

1шт.

5

A66788

CLAMP

U-BOLT

2шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

8

T55227

HOSE - hydraulic 34"

1шт.

9

T55226

HOSE - hydraulic 60"

1шт.

10

T55224

HOSE - hydraulic 26"

1шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight 7/8", Includes: Ref. 12

4шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32"

1шт.

13

A141156

COUPLING, BREAK AWAY

COUPLER - female (See Figrue 51) Order A147741

2шт.

14

A66816

COUPLING, BREAK AWAY

COUPLER - male (See Figure 51) (Order A147889)

2шт.

15

218-998

ELBOW,90 Degree, 7/8"-14 Sw x 1/2" NPT

- 1/2 x 7/8"

1шт.

16

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer 1/2 x 3/4"

2шт.

17

T53145

CHECK VALVE

VALVE - check

1шт.

18

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2" x 90 Deg.

1шт.

19

T54520

STRAP

- nylon tie 3/16 x 11"

1шт.

20

K962085

BASE

PLATE - base (Order K950386)

1шт.

21

K917387

GASKET

- base

1шт.

22

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1шт.

23

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

24

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

24

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.

24

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

24

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.
