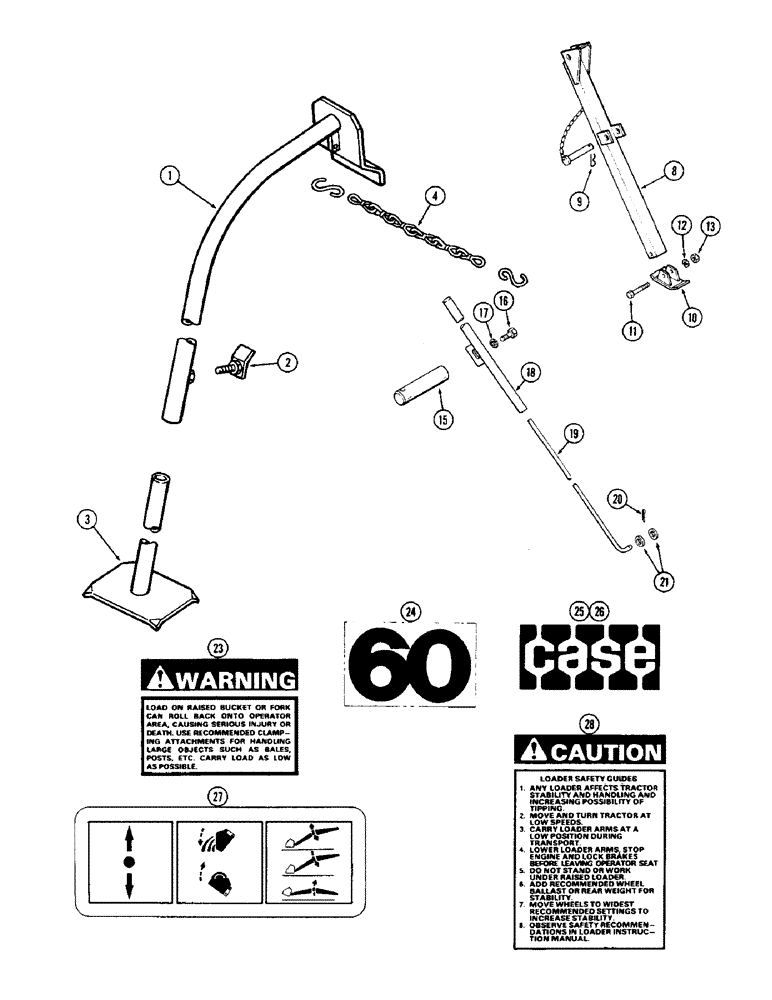

Запчасти Case IH 60 (70) - PARKING STAND, SERIAL NUMBER 1613802 AND AFTER, BUCKET LEVEL INDICATOR, DECALS (82) - FRONT LOADER & BUCKET

1

T54049

SUPPORT - upper

2шт.

2

T53944

HANDLE

- lock

2шт.

3

T54047

SUPPORT - lower

2шт.

4

T54066

CHAIN (AG)

CHAIN ASSEMBLY - cylinder support

2шт.

8

T54569

STAND - parking, Start Serial: 1613802

2шт.

9

T54573

PIN

COTTER - hairpin, Start Serial: 1613802

2шт.

10

T54570

FOOT

- stand, Start Serial: 1613802

2шт.

11

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

, Start Serial: 1613802

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8", Start Serial: 1613802

2шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

, Start Serial: 1613802

4шт.

15

T53523

PIN - mounting, bucket level indicator

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bucket level indicator Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

17

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket level indicator 3/8"

1шт.

18

T53525

TUBE - support, bucket level indicator 10" L

1шт.

19

T53524

ROD

- linkage, bucket level indicator

1шт.

20

132-318

COTTER PIN,5/32" x 1"

bucket level indicator 5/32" x 1"

1шт.

21

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge, bucket level indicator

2шт.

23

321-5654

DECAL

- Warning

1шт.

24

321-3953

DECAL - Model 60

2шт.

25

321-2576

DECAL

- Case

1шт.

26

321-2675

DECAL

- Case

2шт.

27

321-2690

DECAL

- Valve Mount

1шт.

28

321-5655

DECAL

- Safety

1шт.

321-5634

DECAL - Loader Safety (French) Not illustrated

1шт.
