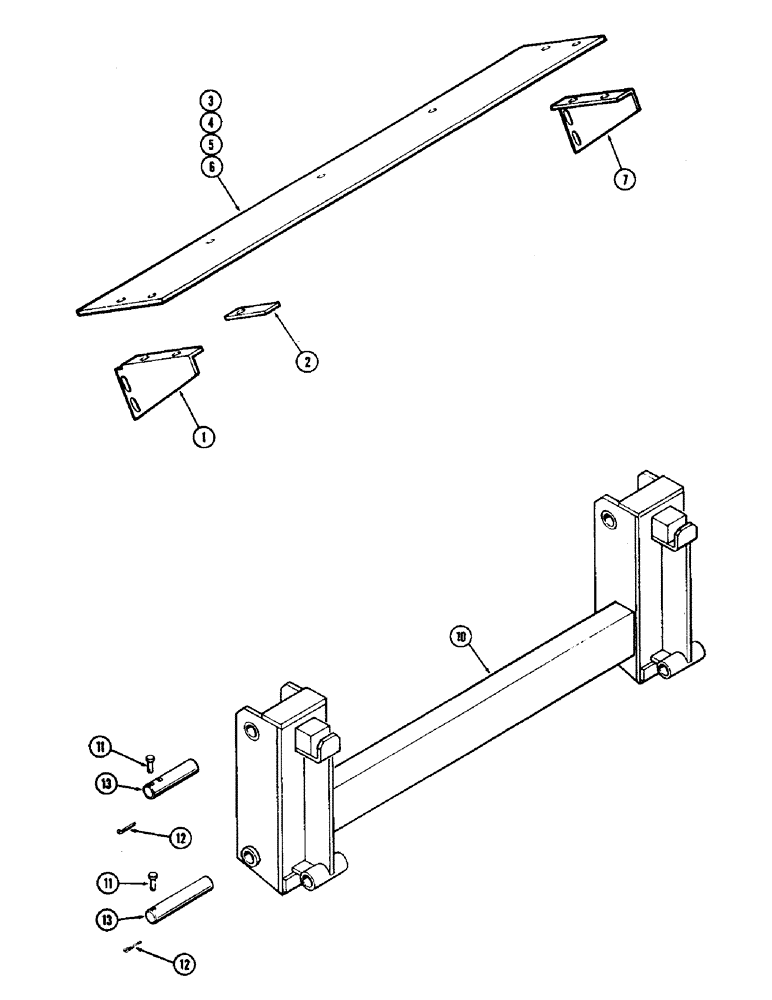

Запчасти Case IH 60 (64) - SPILL GUARD, 66 INCH BUCKET, 72 INCH BUCKET, BUCKET ATTACHING BRACKET, FOR MAINTAING DIGGING DEPTH (82) - FRONT LOADER & BUCKET
№
Артикул
Название
Примечание
Количество
1
T50027
ANGLE
PLATE - end RH
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
95-6
WASHER,3/8"
- 1 x 7/16" x 14 gauge
4шт.
92-6
LOCK WASHER,3/8"
4шт.
25-106
NUT,3/8"-16, G5
- 3/8" NC hex
4шт.
2
T50028
CLAMP
5шт.
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
5шт.
92-6
LOCK WASHER,3/8"
5шт.
25-106
NUT,3/8"-16, G5
- 3/8" NC hex
5шт.
5
T52180
PLATE - spill guard
1шт.
7
T50026
PLATE - end LH
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
95-6
WASHER,3/8"
- 1 x 7/16" x 14 gauge
4шт.
92-6
LOCK WASHER,3/8"
4шт.
25-106
NUT,3/8"-16, G5
- 3/8" NC hex
4шт.
1
T50027
ANGLE
PLATE - end RH 72 inch bucket
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
72 inch bucket Hex, 3/8"-16 x 1", G5, Full Thd
4шт.
95-6
WASHER,3/8"
- 1 x 7/16" x 14 gauge 72 inch bucket
4шт.
92-6
LOCK WASHER,3/8"
72 inch bucket 3/8"
4шт.
25-106
NUT,3/8"-16, G5
- 3/8" NC hex 72 inch bucket
4шт.
2
T50028
CLAMP 72 inch bucket
5шт.
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
72" bucket Hex, 3/8"-16 x 1 1/4", G5, Full Thd
5шт.
92-6
LOCK WASHER,3/8"
72 inch bucket 3/8"
5шт.
25-106
NUT,3/8"-16, G5
- 3/8" NC hex 72 inch bucket
5шт.
6
T50029
PLATE
- spill guard 72 inch bucket
1шт.
7
T50026
PLATE - end LH 72 inch bucket
1шт.
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
72 inch bucket Hex, 3/8"-16 x 1", G5, Full Thd
4шт.
95-6
WASHER,3/8"
- 1 x 7/16" x 14 gauge 72 inch bucket
4шт.
92-6
LOCK WASHER,3/8"
72 inch bucket 3/8"
4шт.
25-106
NUT,3/8"-16, G5
- 3/8" NC hex 72 inch bucket
4шт.
10
T88312
BRACKET - bucket attaching (Machinery Item), Includes: Ref. 11 - 13, bucket attaching bracket for maintaining same digging depth
1шт.
11
T50008
PIN
- clevis, bucket attaching bracket for maintaining same digging depth
4шт.
12
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), , Bucket attaching bracket for maintaining same digging depth 1/8" x 3/4"
4шт.
13
T50016
PIN
- 1-1/8 x 6-1/2", bucket attaching bracket for maintaining same digging depth
4шт.
Выбрано товаров: 34
