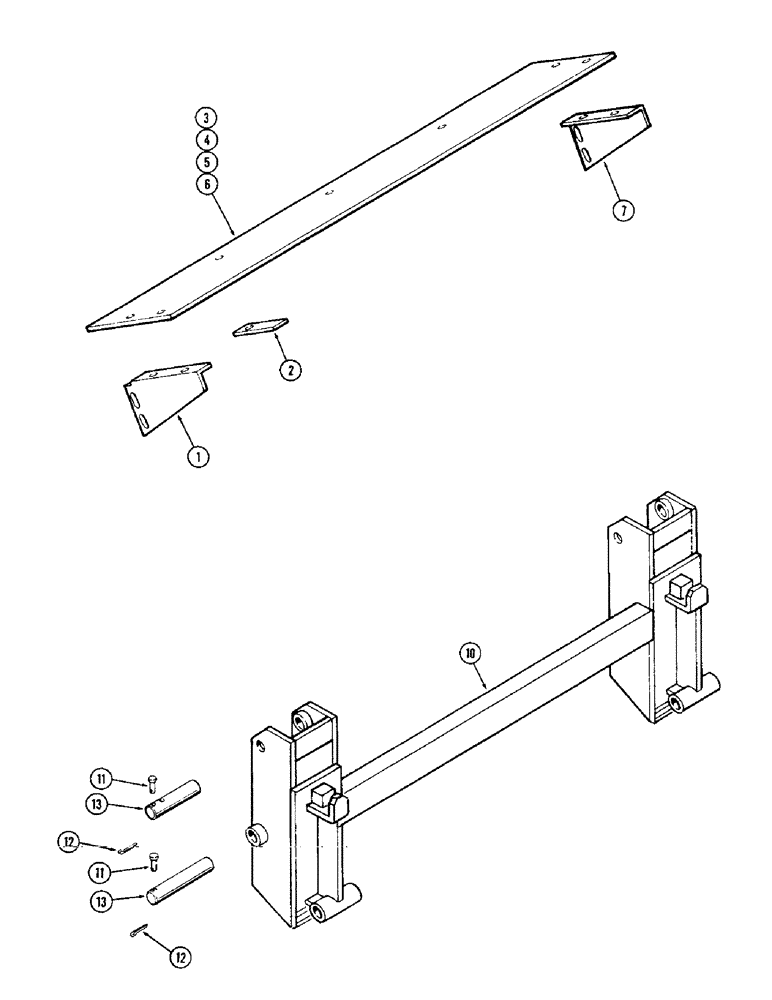

Запчасти Case IH 60 (62) - SPILL GUARD, 48 INCH BUCKET, 60 INCH BUCKET, BUCKET ATTACHING BRACKET, FOR INCREASED DIGGING DEPTH (82) - FRONT LOADER & BUCKET

1

T50027

ANGLE

PLATE - end RH

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

2

T50028

CLAMP

3шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

92-6

LOCK WASHER,3/8"

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

3шт.

3

T52177

PLATE - spill guard

1шт.

7

T50026

PLATE - end LH

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

1

T50027

ANGLE

PLATE - end RH 60 inch bucket

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

60 inch bucket Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge 60 inch bucket

4шт.

92-6

LOCK WASHER,3/8"

60 inch bucket 3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" NC hex 60 inch bucket

4шт.

2

T50028

CLAMP 60 inch bucket

4шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

60" bucket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

60 inch bucket 3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" NC hex 60 inch bucket

4шт.

4

T50025

PLATE

- spill guard 60 inch bucket

1шт.

7

T50026

PLATE - end LH 60 inch bucket

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

60 inch bucket Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge 60 inch bucket

4шт.

92-6

LOCK WASHER,3/8"

60 inch bucket 3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" NC hex 60 inch bucket

4шт.

10

T88313

BRACKET - bucket attaching (Machinery Item), Includes: Ref. 11 - 13, bucket attaching bracket for increased digging depth

1шт.

11

T500008

PIN - clevis, bucket attaching bracket for increased digging depth

4шт.

12

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Bucket attaching bracket for increased digging depth 1/8" x 3/4"

4шт.

13

T50016

PIN

- 1-1/8 x 6-1/2", bucket attaching bracket for increased digging depth

4шт.
