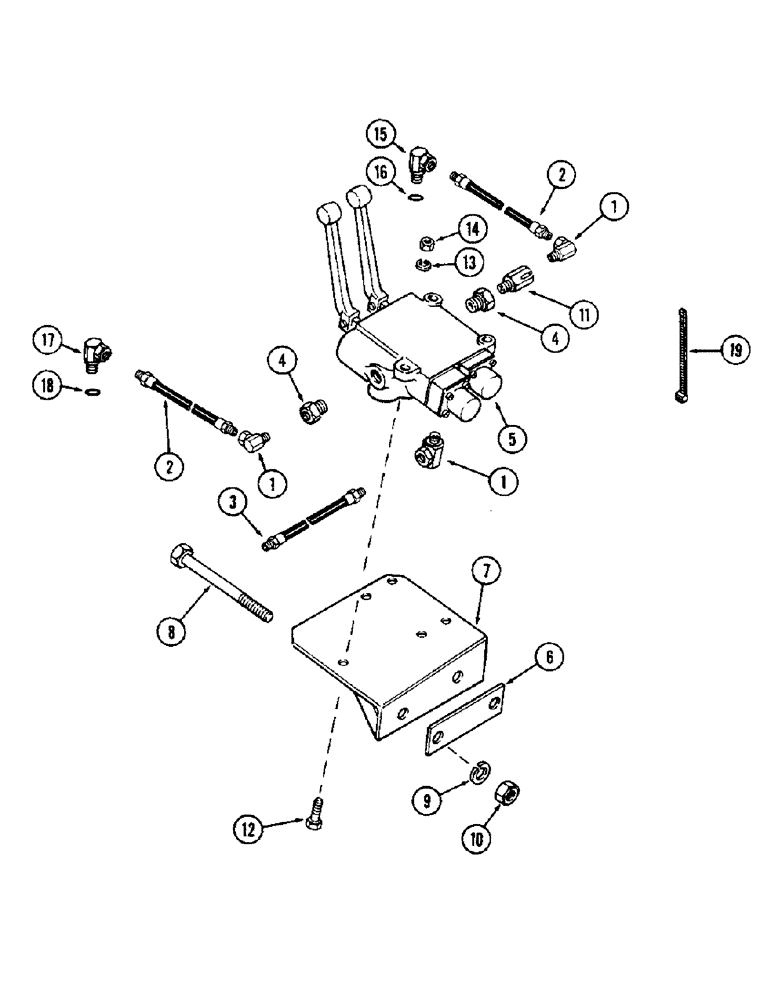

Запчасти Case IH 60 (12) - CONTROL VALVE AND HOSES, USED 1979 AND BEFORE (35) - HYDRAULIC SYSTEMS

1

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2" x 90 Degree

6шт.

2

T50079

HOSE - 3/8 x 60", Serial Range: (Valve-tractor)

2шт.

3

T53780

HOSE - 3/8 x 48", Serial Range: (Valve-loader)

4шт.

4

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer 1/2 x 3/4"

2шт.

5

T53556

VALVE

- control (See Figure 19) Order T57201

1шт.

6

T50918

PLATE - clamp

1шт.

7

T54961

PLATE

MOUNT - valve (Replaces T53557 and T53558 interchangeable)

1шт.

8

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

129-107

NUT,5/8"-11, G5

2шт.

11

T53145

CHECK VALVE

VALVE - check

1шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

13

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

15

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 16

1шт.

17

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 3/4", Includes: Ref. 18

1шт.

19

T54520

STRAP

- nylon tie 3/16 x 11"

2шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.
