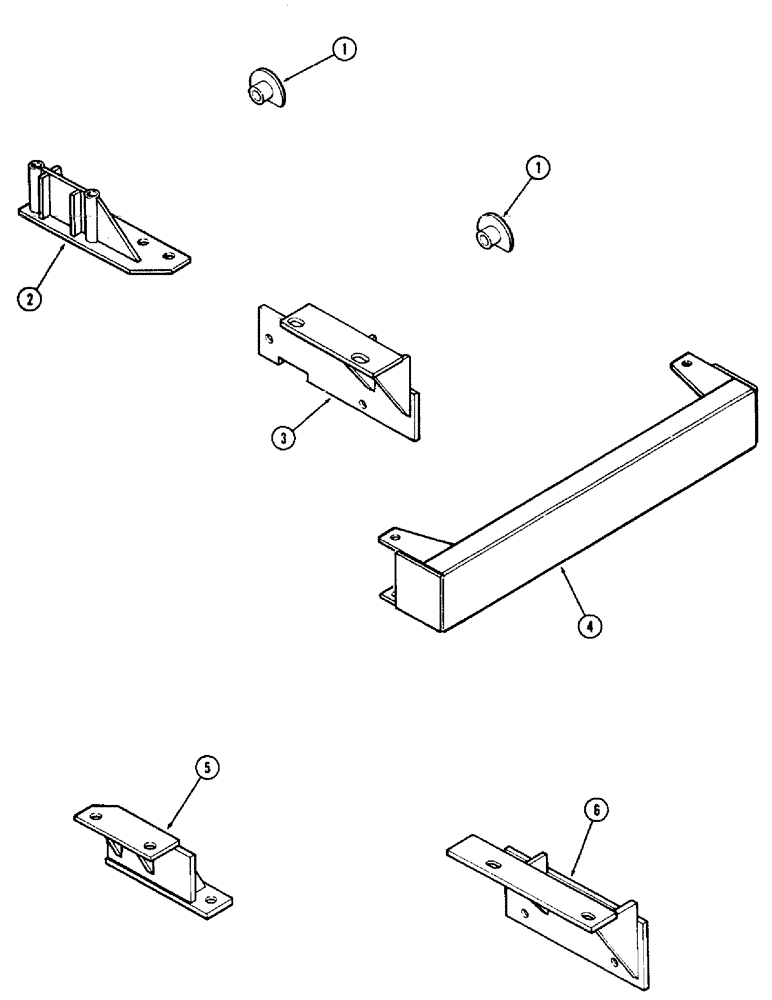

Запчасти Case IH 60 (10) - MOUNTING BRACKETS, 1210 AND 1212 TRACTORS, 990 TRACTORS W/ 79" WHEEL BASE (82) - FRONT LOADER & BUCKET

1

T53864

BUSHING

- mounting

2шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

2

T53553

BRACKET - mounting left rear

1шт.

2

T53554

BRACKET - mounting right rear

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Grade 5)

4шт.

113-776

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- 3/4 x 7" NC hex (Grade 5)

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

129-108

NUT,3/4"-10, G5

4шт.

3

T53551

BRACKET - mounting left front

1шт.

3

T53552

BRACKET - mounting right front

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

4шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

129-107

NUT,5/8"-11, G5

4шт.

4

T53555

BUMPER - front extension

1шт.

1

T53864

BUSHING

- mounting, 990 tractors with 79 inch wheel base

2шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

990 tractors with 79 inch wheel base Hex, 5/8"-11 x 3", G5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 990 tractors with 79 inch wheel base 5/8"

2шт.

129-107

NUT,5/8"-11, G5

990 tractors with 79 inch wheel base 5/8"-11, G5

2шт.

5

T54427

BRACKET - mounting left rear, 990 tractors with 79 inch wheel base

1шт.

5

T54428

BRACKET

- mounting right rear, 990 tractors with 79 inch wheel base

1шт.

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

990 tractors with 79 inch wheel base Hex, 3/4"-10 x 3 1/2", G5

4шт.

195-109

WASHER,3/4"

- 2 x 13/16 x 5/32", 990 tractors with 79 inch wheel base

2шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Grade 5), 990 tractors with 79 inch wheel base

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , 990 tractors with 79 inch wheel base 3/4"

4шт.

129-108

NUT,3/4"-10, G5

990 tractors with 79 inch wheel base 3/4"-10, G5

4шт.

6

T54682

BRACKET - mounting left front, 990 tractors with 79 inch wheel base

1шт.

6

T54681

BRACKET - mounting right front, 990 tractors with 79 inch wheel base

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

990 tractors with 79 inch wheel base Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge, 990 tractors with 79 inch wheel base

6шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 990 tractors with 79 inch wheel base 5/8"

8шт.

129-107

NUT,5/8"-11, G5

990 tractors with 79 inch wheel base 5/8"-11, G5

4шт.
