Главная
/
Справочники
/
Case IH
/
Погрузочно-разгрузочные машины
/
Погрузчики
/
FL
/
(60) - CASE FRONT END LOADER (1/78-12/83)
/
(82) - FRONT LOADER & BUCKET
/

(08) - MOUNTING BRACKETS, 990 AND 995 TRACTORS, PRIOR TO SN 985304

Запчасти Case IH 60 (08) - MOUNTING BRACKETS, 990 AND 995 TRACTORS, PRIOR TO SN 985304 (82) - FRONT LOADER & BUCKET

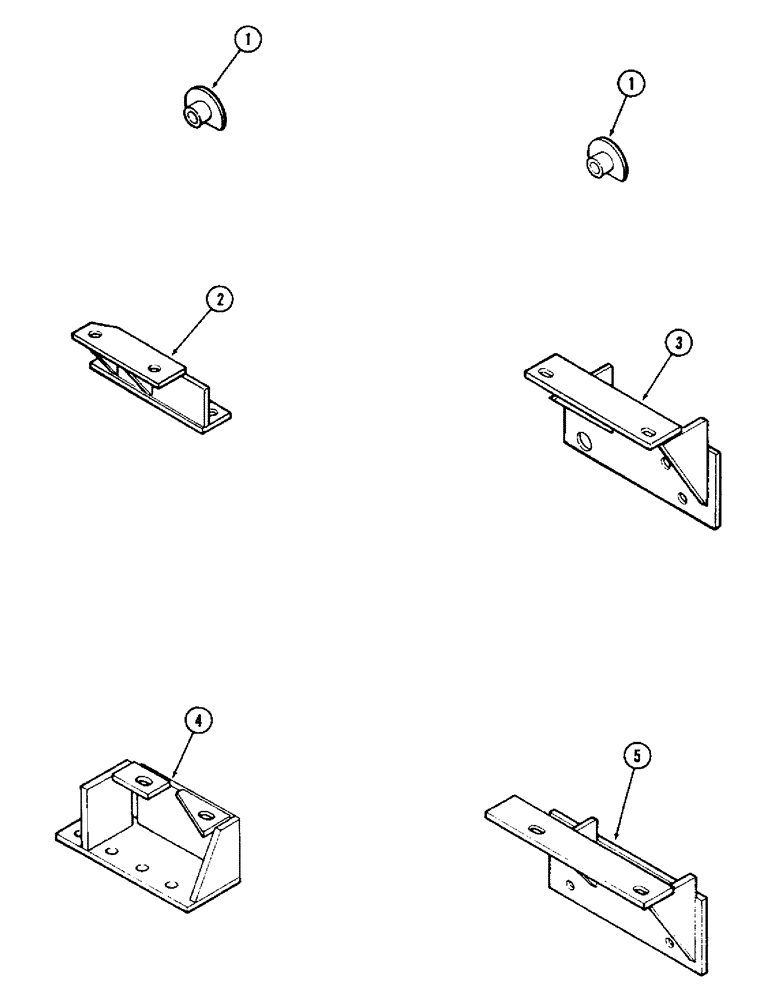

Схема запчастей Case IH 60 - (08) - MOUNTING BRACKETS, 990 AND 995 TRACTORS, PRIOR TO SN 985304 (82) - FRONT LOADER & BUCKET

№

Артикул

Название

Примечание

Количество

1

T53864

BUSHING

- mounting

2шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

2

T53540

BRACKET - mounting left rear

1шт.

2

T53541

BRACKET - mounting, right rear

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Grade 5)

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

3

T53538

BRACKET - mounting left front

1шт.

3

T53539

BRACKET - mounting right front

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

4шт.

1

T53864

BUSHING

- mounting, 990 tractors with rops

2шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

990 tractors with ROPS Hex, 5/8"-11 x 3", G5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 990 tractors with ROPS 5/8"

2шт.

129-107

NUT,5/8"-11, G5

990 tractors with ROPS 5/8"-11, G5

2шт.

4

T55139

BRACKET - mounting left rear, 990 tractors with rops

1шт.

4

T55140

BRACKET - mounting right rear, 990 tractors with rops

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC (Grade 5), 990 tractors with rops

4шт.

195-109

WASHER,3/4"

- 2 x 13/16 x 5/32", 990 tractors with rops

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , 990 tractors with ROPS 3/4"

4шт.

129-108

NUT,3/4"-10, G5

990 tractors with ROPS 3/4"-10, G5

4шт.

5

T54682

BRACKET - mounting left front, 990 tractors with rops

1шт.

5

T54681

BRACKET - mounting right front, 990 tractors with rops

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

990 tractors with ROPS Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge, 990 tractors with rops

6шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 990 tractors with ROPS 5/8"

8шт.

129-107

NUT,5/8"-11, G5

990 tractors with ROPS 5/8"-11, G5

4шт.

Выбрано товаров: 31
