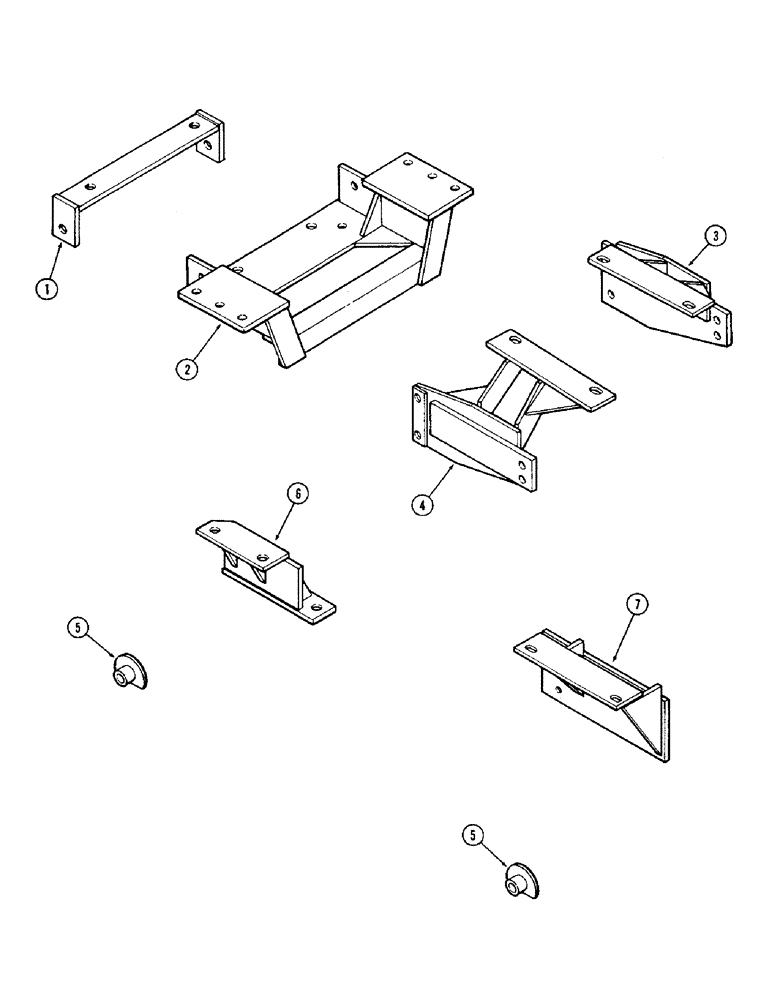

Запчасти Case IH 60 (06) - MOUNTING BRACKETS, 885 TRACTORS, 990/995 TRACTORS, S/N 985304 & AFTER (82) - FRONT LOADER & BUCKET

1

T53537

STRAP - support

1шт.

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

2

T54052

BRACKET

- rear (Replaces T53536 interchangeable)

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Grade 5)

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

3

T54051

BRACKET

- mounting right front (Replaces T53535 interchangeable)

1шт.

4

T54050

BRACKET

- mounting left front (Replaces T53534 interchangeable)

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

12шт.

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

129-107

NUT,5/8"-11, G5

4шт.

5

T53864

BUSHING

- mounting (990/995 TRACTORS), Start Serial: 985304

2шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(990/995 Tractors) Hex, 5/8"-11 x 3", G5, Start Serial: 985304

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (990/995 tractors) 5/8", Start Serial: 985304

2шт.

129-107

NUT,5/8"-11, G5

(990/995 Tractors) 5/8"-11, G5, Start Serial: 985304

2шт.

6

T54427

BRACKET - mounting left rear (990/995 TRACTORS), Start Serial: 985304

1шт.

6

T54428

BRACKET

- mounting right rear (990/995 TRACTORS), Start Serial: 985304

1шт.

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(990/995 Tractors) Hex, 3/4"-10 x 3 1/2", G5, Start Serial: 985304

4шт.

195-109

WASHER,3/4"

- 2 x 13/16 x 5/32" (990/995 TRACTORS), Start Serial: 985304

2шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Grade 5) (990/995 TRACTORS), Start Serial: 985304

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (990/995 tractors) 3/4", Start Serial: 985304

4шт.

129-108

NUT,3/4"-10, G5

(990/995 Tractors) 3/4"-10, G5, Start Serial: 985304

4шт.

7

T54425

BRACKET - mounting left front (990/995 TRACTORS), Start Serial: 985304

1шт.

7

T54426

BRACKET - mounting right front (990/995 TRACTORS), Start Serial: 985304

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(990/995 Tractors) Hex, 5/8"-11 x 1 1/2", G5, Full Thd, Start Serial: 985304

8шт.

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge (990/995 TRACTORS), Start Serial: 985304

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (990/995 tractors) 5/8", Start Serial: 985304

8шт.

129-107

NUT,5/8"-11, G5

(990/995 Tractors) 5/8"-11, G5, Start Serial: 985304

4шт.
