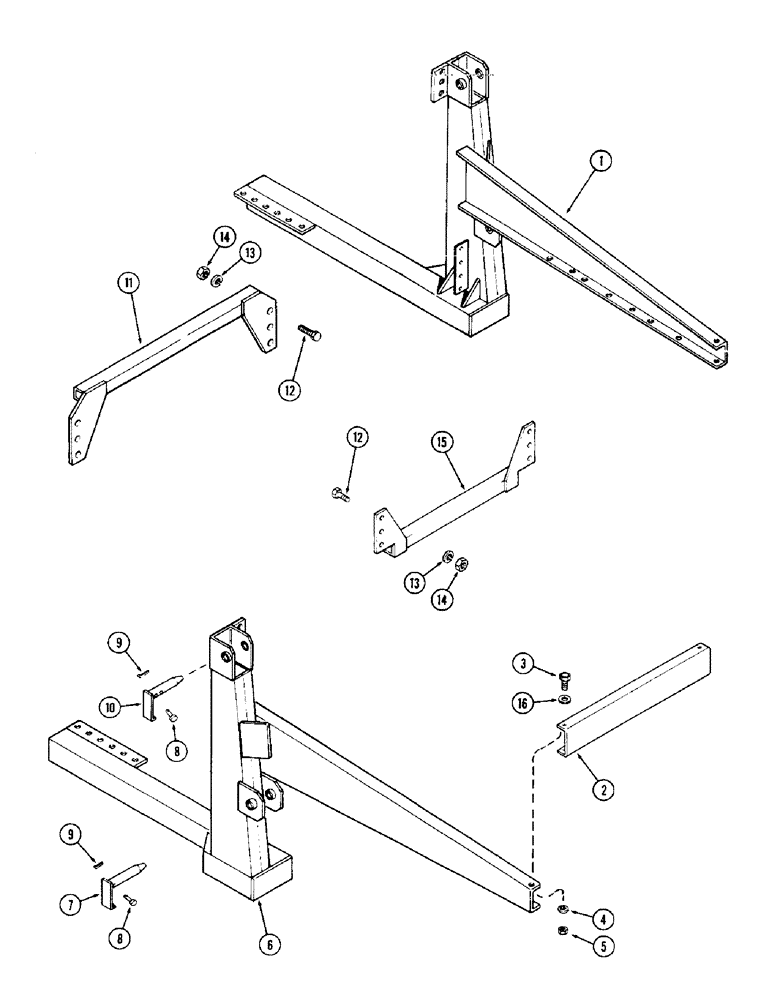

Запчасти Case IH 60 (04) - SUB FRAMES (82) - FRONT LOADER & BUCKET

1

T53545

SUB FRAME - left hand

1шт.

2

T53547

BUMPER - front (885, 990 and 995)

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

6

T53546

SUB FRAME - right hand

1шт.

7

T54068

PIN

- quick release

2шт.

8

T50008

PIN

- clevis

4шт.

9

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

10

T54067

PIN

- quick release

2шт.

11

T54069

CROSS BRACE - upper

1шт.

12

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

129-107

NUT,5/8"-11, G5

8шт.

15

T55642

CROSS BRACE - lower

1шт.

16

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

4шт.
