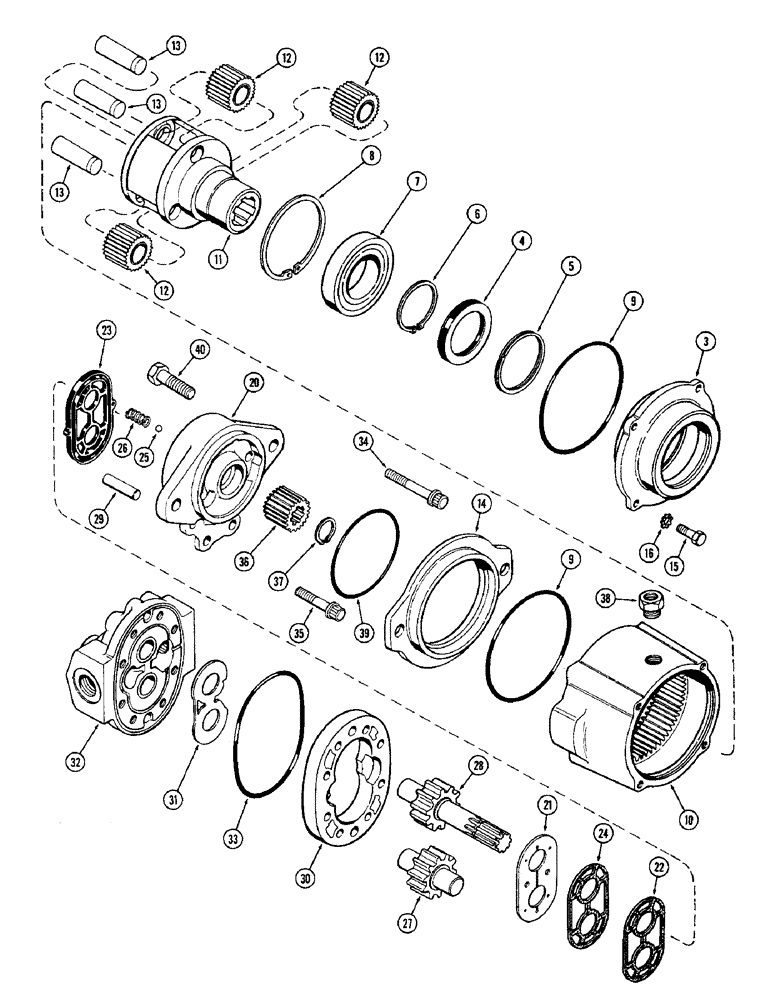

Запчасти Case IH 60 (56) - T54596 HYDRAULIC PUMP, 12 GPM PUMP, 1210 AND 1212 TRACTORS (35) - HYDRAULIC SYSTEMS

T54596

PUMP ASSEMBLY - hydraulic PTO driven, Includes: Ref. 3 - 40

1шт.

T55318

GEAR BOX ASSEMBLY - 1:4 step up, Inlcudes: Ref. 3 - 16

1шт.

3

T55322

LARGE PLATE

PLATE - front

1шт.

4

T55327

DOOR SEAL

- shaft

1шт.

5

T55325

RING - retaining 3" bore internal #300, 3.122, Int, Spiral

1шт.

6

39326

SNAP RING,#215, Ext

RING - retaining 2-3/32" external

1шт.

7

T25088

BALL BEARING,55 mm ID x 90 mm OD x 18 mm

BEARING - carrier

1шт.

8

L13903

SNAP RING,3.562", Int, #354

Ring, Snap, 3.562", Int, #354

1шт.

9

S5751

O-RING,4.737" ID x 4.943" OD x 0.103"

- 3/32 x 4-3/4" ID

2шт.

10

T55321

HOUSING - gear

1шт.

11

T55324

CARRIER ASSEMBLY - gear

1шт.

12

T55320

GEAR

ASSEMBLY - planet with bushing

3шт.

13

T55326

PIN - dowel 3/4 x 2-1/4"

3шт.

14

T55323

PLATE

- adapter

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

16

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

4шт.

T55319

PUMP ASSEMBLY - gear, Includes: Ref. 20 - 37

1шт.

20

H590133

COVER

PLATE ASSEMBLY - front

1шт.

21

A45351

DIAPHRAGM

DIAPHRAM

1шт.

22

H260935

GASKET

- protector

1шт.

23

H273912

SEAL

- diaphram (Order H335331)

1шт.

24

H260927

GASKET

- back-up

1шт.

25

211-312

BALL,13/32" Dia

- steel meter 13/32" Dia

1шт.

26

D31403

SPRING

- ball

1шт.

27

T55330

GEAR

ASSEMBLY - idler

1шт.

28

T55331

GEAR ASSEMBLY - drive

1шт.

29

A40785

AXLE PIN,12.7mm OD x 63.5mm L

PIN - dowel 7/16 x 1-3/4"

2шт.

30

H233452

BODY

- pump

1шт.

31

D41322

PLATE

- thrust (Order A45358)

1шт.

32

T55329

LARGE PLATE

PLATE - back

1шт.

33

H756221

O-RING,4.987" ID x 5.193" OD

- 5 x 5-3/16 x 3/32"

2шт.

34

166-53

SCREW,Flg, 3/8" - 16 x 3", Gr 8

CAPSCREW - 3/8 x 3" 12 point head

4шт.

35

166-51

12 PT SCREW,Flg, 3/8" - 16 x 2 1/2", Gr 8

CAPSCREW - 3/8 x 2-1/2" 12 point head

4шт.

36

T55332

GEAR

- sun

1шт.

37

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

2шт.

38

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer 3/8 to 1/4" pipe thread

1шт.

39

H756346

O-RING

- 4 x 4-3/16 x 3/32"

1шт.

40

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex (Grade 5) Order 113-412

2шт.
