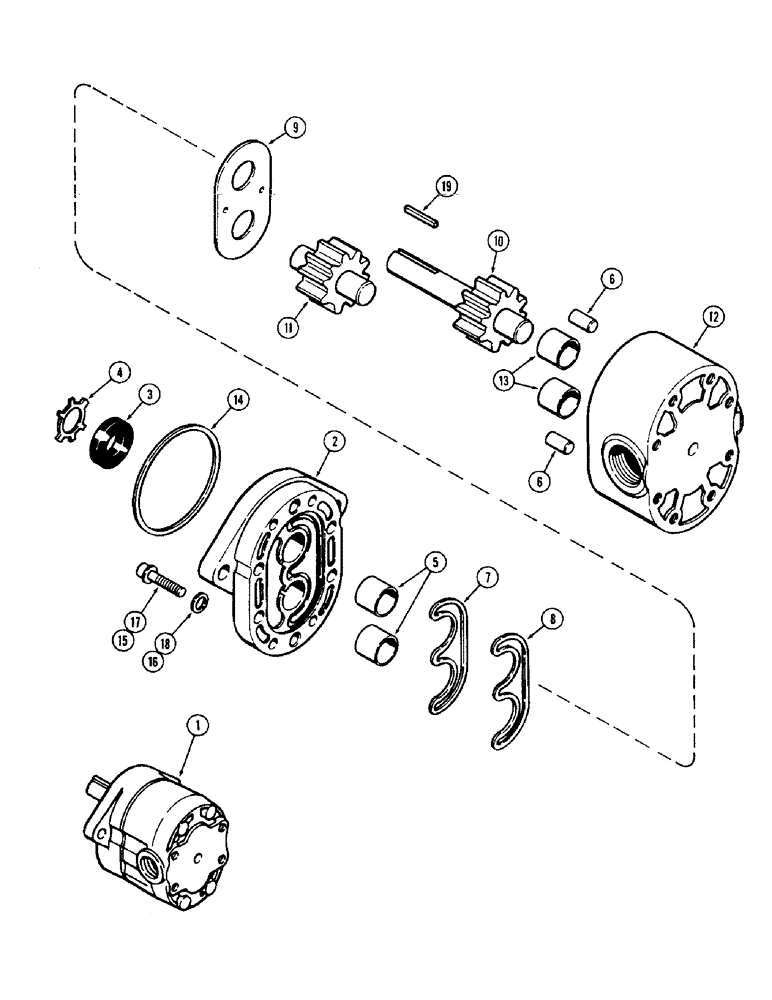

Запчасти Case IH 60 (54) - T54597 HYDRAULIC PUMP, 13 GPM PUMP, 885, 990 AND 995 TRACS. (35) - HYDRAULIC SYSTEMS

1

T54597

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic 13 GPM, Includes: Ref. 2 - 19

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - pump (Order T54597), Includes: Ref. 3 - 5

1шт.

3

R22149

SEAL

- oil (Order T55042)

1шт.

Part of Repair Kit, P/N T55042

1шт.

4

T54615

RETAINER - oil seal (Order T55042)

1шт.

Part of Repair Kit, P/N T55042

1шт.

5

A34643

BUSHING

BEARING - sleeve

2шт.

6

T54621

PIN,9.52mm OD x 39.62mm L

- dowel

2шт.

7

T54620

SEAL - pre-load (Order T55042)

1шт.

Part of Repair Kit, P/N T55042

1шт.

8

54619

SEAL - load (Order T55042)

1шт.

Part of Repair Kit, P/N T55042

1шт.

9

T54618

PLATE - wear (Order T55042)

1шт.

Part of Repair Kit, P/N T55042

1шт.

10

T54609

SHAFT

GEAR ASSEMBLY - drive

1шт.

11

T54612

SHAFT

GEAR ASSEMBLY - driven

1шт.

12

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - pump (Order T54597), Includes: Ref. 13

1шт.

13

A34643

BUSHING

BEARING - sleeve

2шт.

14

T54616

RING - sealing (Order T55042)

1шт.

Part of Repair Kit, P/N T55042

1шт.

15

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

SCREW - 3/8 x 1-1/2" hex socket head

4шт.

16

A32395

WASHER

- 25/64 x 9/16" x 16 gauge

4шт.

Part of Repair Kit, P/N T55042

1шт.

17

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

SCREW - 5/16 x 1-1/4" hex socket head

4шт.

18

D46324

WASHER

- 21/64 x 15/32" x 16 gauge

4шт.

19

P2712S

KEY - 3/16 x 1-1/8"

1шт.

Part of Repair Kit, P/N T55042

1шт.

T55042

KIT

- repair, Includes Refs., 3, 4, 7, 8, 9, 14, 16, 18 and 19

1шт.
