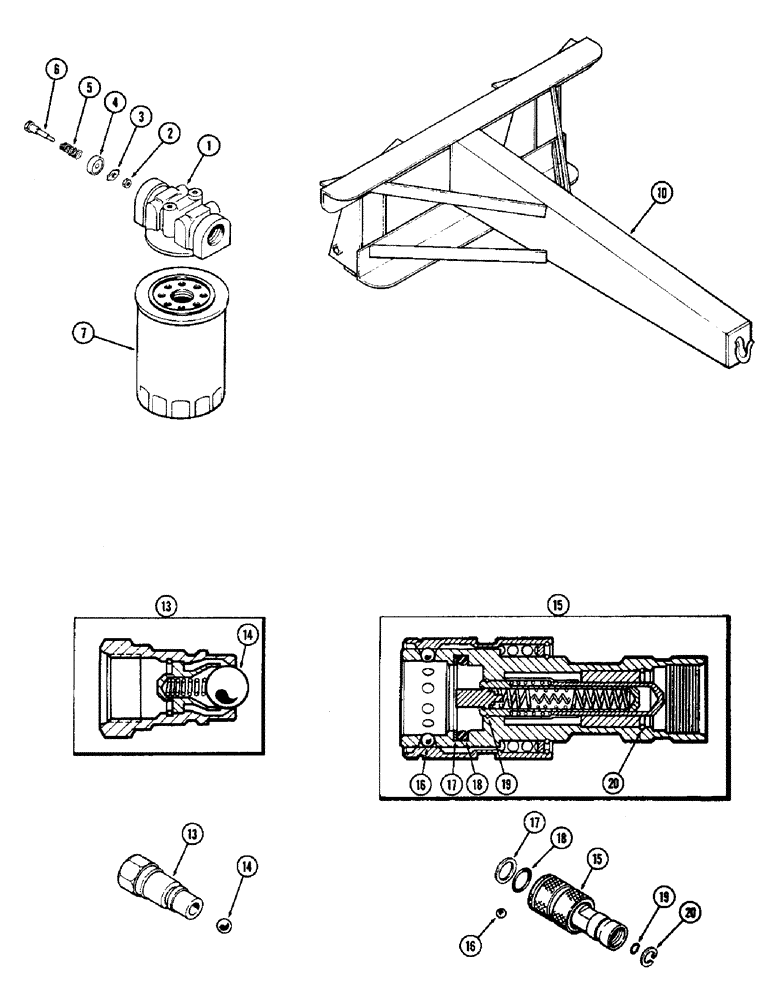

Запчасти Case IH 60 (50) - HYDRAULIC FILTER, BOOM SPECIAL, HYDRAULIC COUPLER (35) - HYDRAULIC SYSTEMS

T63215

FILTER

ASSEMBLY - hydraulic, Includes: Ref. 1 - 7

1шт.

1

T54622

HEAD

- body

1шт.

2

T54623

NUT

- lock

1шт.

3

T54626

RETAINER

- bypass

1шт.

4

T54624

VALVE POPPET

POPPET - bypass

1шт.

5

T54627

SPRING

- bypass poppet

1шт.

6

T54625

PIN

- bypass

1шт.

7

T54598

ELEMENT

- filter (25 micron)

1шт.

10

T88314

BOOM - special heavy duty (Machinery Item)

1шт.

13

A66816

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - breakaway (Male) Order A147889, Includes: Ref. 14, hydraulic coupler

1шт.

14

211-316

BALL,17/32" Dia

- meter, hydraulic coupler 17/32" Dia

1шт.

15

A141156

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - breakaway (Female) Order A147741, Includes: Ref. 16 - 20, hydraulic coupler

1шт.

16

211-355

BALL

- 3/16" diameter (Order 211-5), hydraulic coupler

10шт.

17

A44890

RING

- backup, hydraulic coupler

1шт.

A45600

KIT

- seal, Includes: Ref. 18 - 20, hydraulic coupler

1шт.

18

A45601

SEAL

- body, hydraulic coupler

1шт.

19

A45363

SEAL

O-RING, hydraulic coupler

1шт.

20

A45603

RING, LOCKING

RING - lock (Order A47220), hydraulic coupler

1шт.
