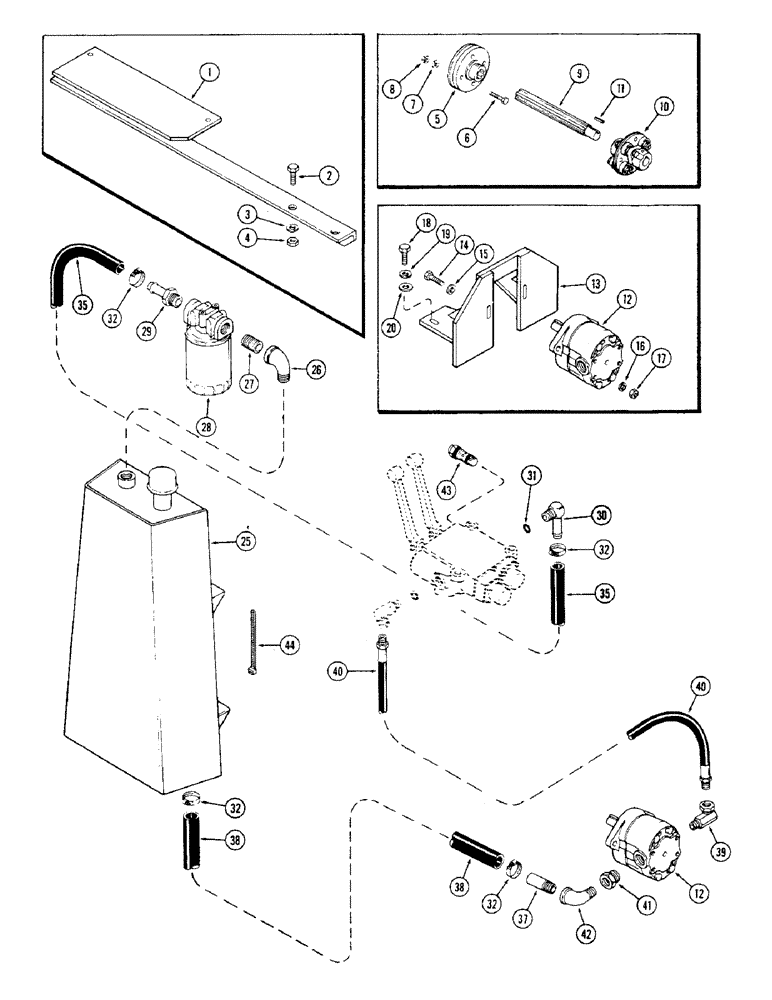

Запчасти Case IH 60 (38) - HYDRAULIC KIT, FRONT MOUNTED, 13 GPM PUMP, 885 TRACTORS, USED 1979 & AFTER (35) - HYDRAULIC SYSTEMS

T94961

KIT - hydraulic front (Machinery Item), Includes: Ref. 1 - 44

1шт.

1

T54579

SUPPORT - battery box

1шт.

2

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

129-107

NUT,5/8"-11, G5

2шт.

5

T54574

PULLEY

ADAPTER - pulley

1шт.

6

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" NC hex (Grade 5)

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

9

T54575

SHAFT

- drive 7-3/4"

1шт.

10

T63217

COUPLING

COUPLER ASSEMBLY - drive (See Figure 53)

1шт.

11

F62223

KEY

- 3/16 x 1"

1шт.

12

T54597

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic 13 GPM (See Figure 55)

1шт.

13

T54577

MOUNT - pump

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

15

195-104

WASHER,3/8"

- 1 x 7/16 x 3/32"

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

20

195-105

WASHER,7/16"

- 1-1/4 x 1/2 x 1/16"

2шт.

129-104

NUT,7/16"-14, G5

(If used), Not illustrated 7/16"-14, G5

2шт.

25

T54586

RESERVOIR ASSEMBLY - seven gallon (See Figure 53)

1шт.

26

221-378

ELBOW,90 Degree, 3/4" NPT

- 3/4"

1шт.

27

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - 3/4 x 3"

1шт.

28

T63215

FILTER

ASSEMBLY - hydraulic oil (See Figure 51)

1шт.

29

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

NIPPLE - hose 3/4 x 3/4"

1шт.

30

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW ASSEMBLY - hose 7/8", Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32"

1шт.

32

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

35

T54600

HYDRAULIC HOSE,0.75" ID x 36.00"

- Return 0.75" ID x 36.00"

1шт.

37

T54578

NIPPLE - 3/4 x 2-1/2"

1шт.

38

T54599

HOSE - suction 1 x 84"

1шт.

39

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2 x 1/2"

1шт.

40

T54011

HOSE - pump to valve 3/8 x 108"

1шт.

41

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducer 1 to 3/4"

1шт.

42

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

43

T54603

VALVE - relief 2200 PSI

1шт.

44

T54520

STRAP

- nylon tie 3/16 x 11"

3шт.

T54581

CABLE - battery negative (Not illustrated)

1шт.
