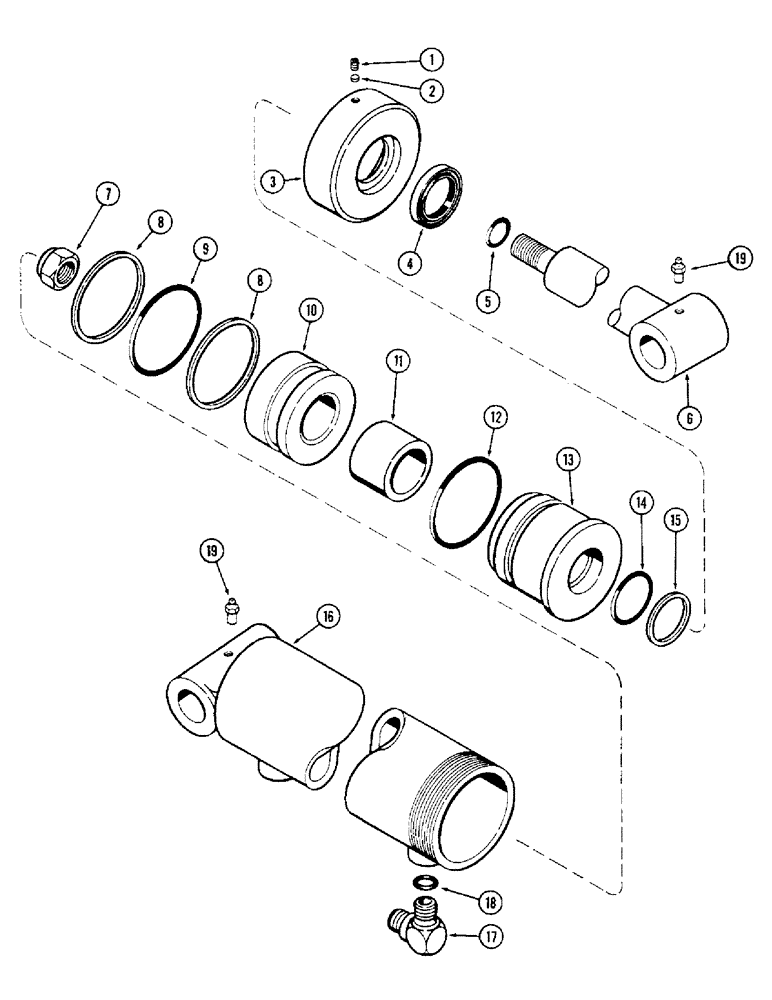

Запчасти Case IH 60 (32) - T53550 LIFT CYLINDER, PRIOR TO SERIAL NUMBER 124853 (35) - HYDRAULIC SYSTEMS

T53550

CYLINDER - lift complete (Replaced by T54040), Includes: Ref. 1 - 16

2шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SETSCREW - 1/4 x 1/4" socket headless

1шт.

2

T55068

PLUG

- nylon

1шт.

Part of Seal Kit, P/N T63155

1шт.

3

T53356

CAP

HEAD CAP

1шт.

4

B17291

WIPER SEAL

SEAL - wiper lip type

1шт.

Part of Seal Kit, P/N T63155

1шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8"

1шт.

Part of Seal Kit, P/N T63155

1шт.

6

T53561

ROD

- piston 1-1/4"

1шт.

7

131-909

LOCK NUT,3/4"-16

NUT - piston rod

1шт.

8

B17296

BACK-UP RING

RING - backup

2шт.

Part of Seal Kit, P/N T63155

1шт.

9

T53353

O-RING,1.6" ID x 2.02" OD x 0.21"

- 1-5/8 ID x 3/16"

1шт.

Part of Seal Kit, P/N T63155

1шт.

10

B17272

PISTON

1шт.

11

T53562

SPACER

1шт.

12

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- 2 x 1-3/4 x 1/8"

1шт.

Part of Seal Kit, P/N T63155

1шт.

13

T53357

HEAD

1шт.

14

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- 1-1/2 x 1-1/4 x 1/8"

1шт.

Part of Seal Kit, P/N T63155

1шт.

15

B17298

BACK-UP RING

RING - backup

1шт.

Part of Seal Kit, P/N T63155

1шт.

16

T53560

TUBE

- cylinder

1шт.

17

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 90 Degree, Includes: Ref. 18

2шт.

19

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

4шт.

T63155

KIT

- seal, Includes Refs., 2, 4, 5, 8, 9, 12, 14 and 15

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.
