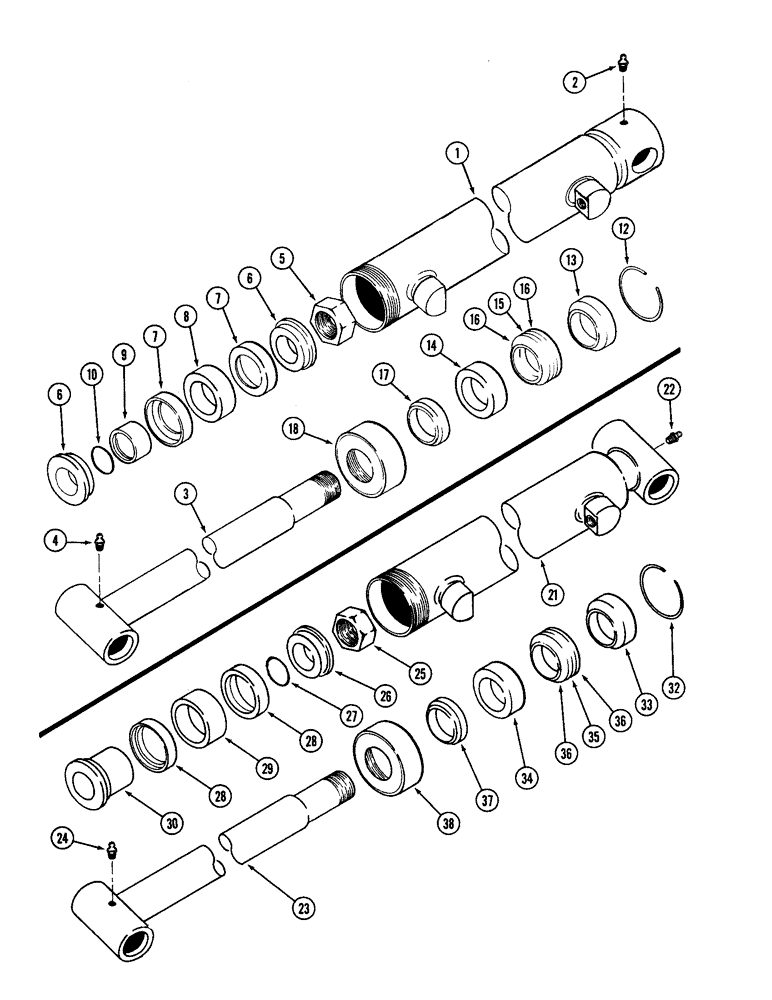

Запчасти Case IH 5QA (8-08) - BUCKET CYLINDERS, 5QA & 7QA LOADERS (08) - HYDRAULICS

1960654C1

CYLINDER ASSY.

bucket, 1-1/2 x 14 inch, 5QA, Includes: Ref. 1 - 18

2шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - bucket cylinder (Order 1960654C1), Includes: Ref. 2

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

1960265C1

SHIM

ROD ASSEMBLY - bucket cylinder, Includes: Ref. 4

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

18453R1

NUT,5/8"-18

hex lock, 5/8 inch NF

1шт.

6

1960680C1

PISTON

END

2шт.

7

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal Kit, P/N 1960685C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit, P/N 1960685C1

1шт.

9

1960463C1

PISTON

RING center

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Kit, P/N 1960685C1

1шт.

12

1960682C1

CLIP

WIRE retaining

1шт.

13

1960684C1

GUIDE

packing, male

1шт.

14

1960683C1

GUIDE

packing, female

1шт.

15

NSS

NOT SOLD SEPARAT

V-SEAL ruber

1шт.

Part of Seal Kit, P/N 1960685C1

1шт.

16

NSS

NOT SOLD SEPARAT

V-SEAL fiber

2шт.

Part of Seal Kit, P/N 1960685C1

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Kit, P/N 1960685C1

1шт.

18

1960681C1

NUT

cartridge

1шт.

1960685C1

SEAL KIT

seal, Includes: Ref. 7, 8, 10, 15, 16 and 17

1шт.

1969354C1

CYLINDER

ASSEMBLY bucket, 1-3/4 x 14", 7qa loader, Includes: Ref. 21 - 38

2шт.

21

NSS

NOT SOLD SEPARAT

BODY cylinder (Order 1969354C1), Includes: Ref. 22

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

23

1969355C1

ROD

cylinder, Includes: Ref. 24

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

25

19638R1

LOCK NUT,3/4"-16, GB

lock, 3/4 inch NF

1шт.

26

1960662C1

PISTON

END

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Repair Kit, P/N 1960258C1

1шт.

28

NSS

NOT SOLD SEPARAT

RING piston wear

2шт.

Part of Seal Repair Kit, P/N 1960258C1

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Repair Kit, P/N 1960258C1

1шт.

30

1960657C1

PISTON

cylinder

1шт.

32

1960663C1

CLIP

WIRE retaining

1шт.

33

1960664C1

PACKING

GUIDE male

1шт.

34

1958493C1

PACKING

GUIDE female

1шт.

35

NSS

NOT SOLD SEPARAT

V-SEAL rubber

1шт.

Part of Seal Repair Kit, P/N 1960258C1

1шт.

36

NSS

NOT SOLD SEPARAT

V-SEAL fiber

2шт.

Part of Seal Repair Kit, P/N 1960258C1

1шт.

37

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Repair Kit, P/N 1960258C1

1шт.

38

1960656C1

NUT

cylinder retaining

1шт.

1960258C1

SEAL KIT

seal repair, Includes: Ref. 27, 28, 29, 35, 36 and 37

1шт.
