(9-16[B]) - BUCKET LEVEL INDICATOR, 5QA AND 7QA LOADER

Запчасти Case IH 5QA (9-16[B]) - BUCKET LEVEL INDICATOR, 5QA AND 7QA LOADER (09) - CHASSIS/ATTACHMENTS

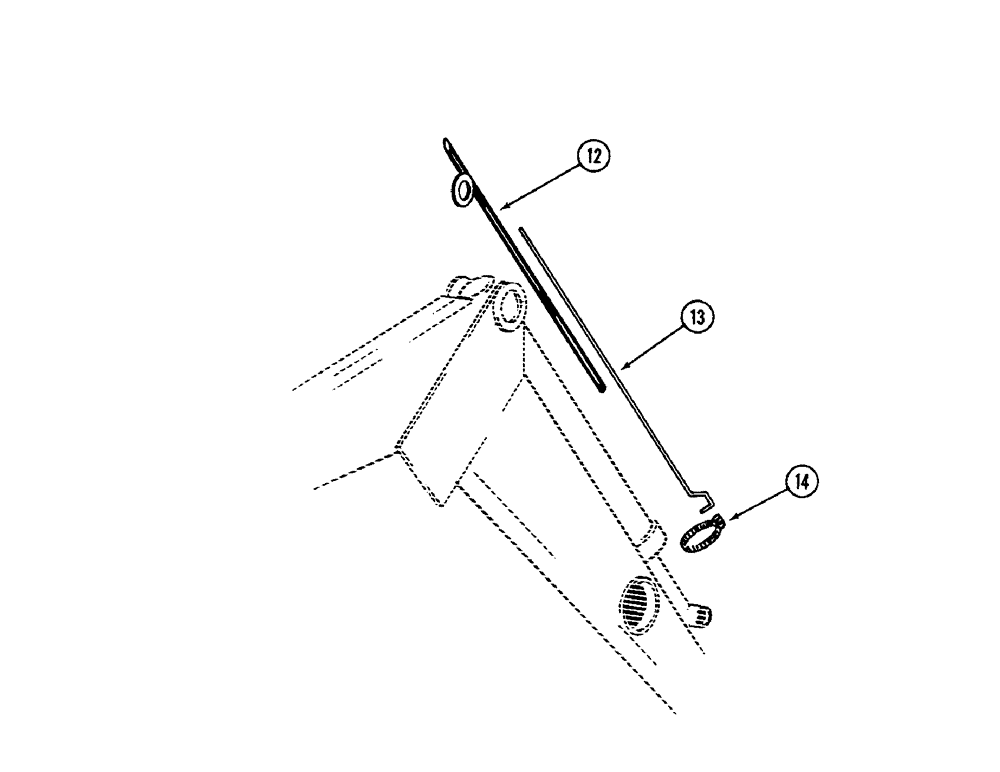

Схема запчастей Case IH 5QA - (9-16[B]) - BUCKET LEVEL INDICATOR, 5QA AND 7QA LOADER (09) - CHASSIS/ATTACHMENTS
14
13
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1337252C1

INDICATOR ATTACHMENT bucket level (Machinery item)

1шт.

12

1960672C1

TUBE

level indicator, bucket

1шт.

13

1960673C1

ROD

indicator, bucket level

1шт.

14

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

hose retaining, bucket level indicator

1шт.

Выбрано товаров: 4
