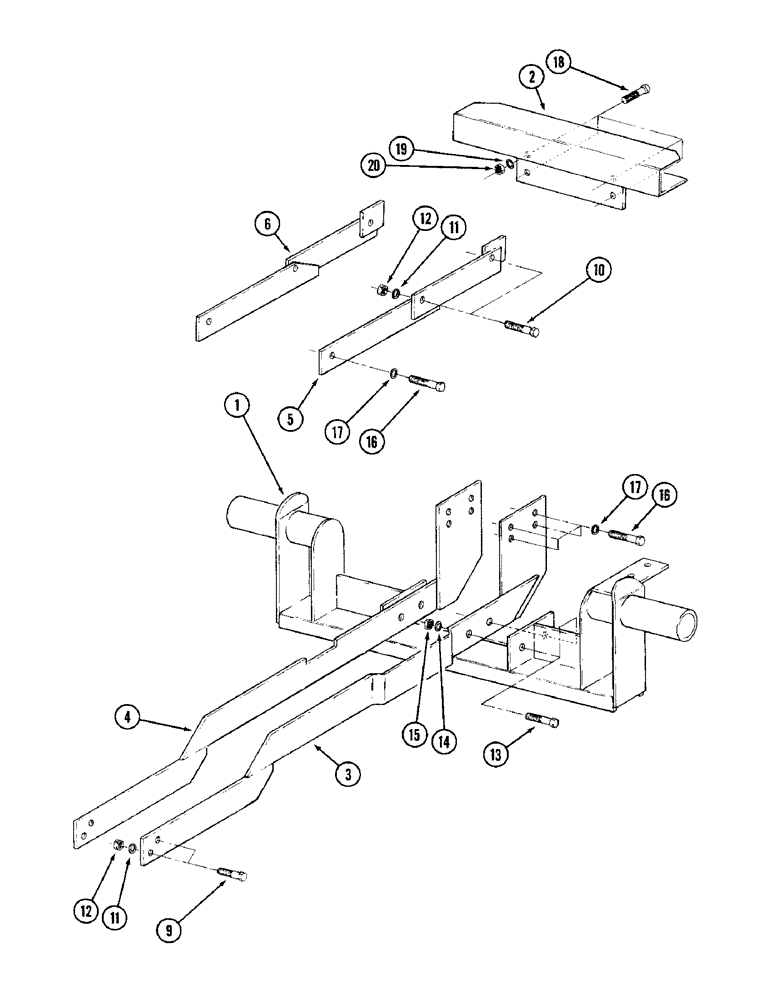

Запчасти Case IH 5QA (9-08) - MOUNTING SUPPORTS AND RAILS, 5QA LOADER (09) - CHASSIS/ATTACHMENTS

1

1349638C1

FRAME

rear boom mounting (Replaces 1960645C1)

1шт.

2

1960646C1

SUPPORT

front boom mounting

1шт.

3

1349534C1

RAIL ASSY.

mounting, right rear (Replaces 1960647C1)

1шт.

4

1960648C1

RAIL

mounting, left rear

1шт.

5

1960649C1

RAIL

mounting, right front

1шт.

6

1960650C1

RAIL

mounting, left front

1шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

12

425-108

NUT,1/2" - 13, Gr 5

8шт.

13

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

14

492-11062

BEARING WASHER,5/8"

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

16

514-821

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

hex, 12 - 1.25 x 40 mm

10шт.

17

892-11012

LOCK WASHER,M12

10шт.

18

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

19

492-11044

LOCK WASHER,7/16"

4шт.

20

425-107

NUT,7/16"-14, G5

4шт.
