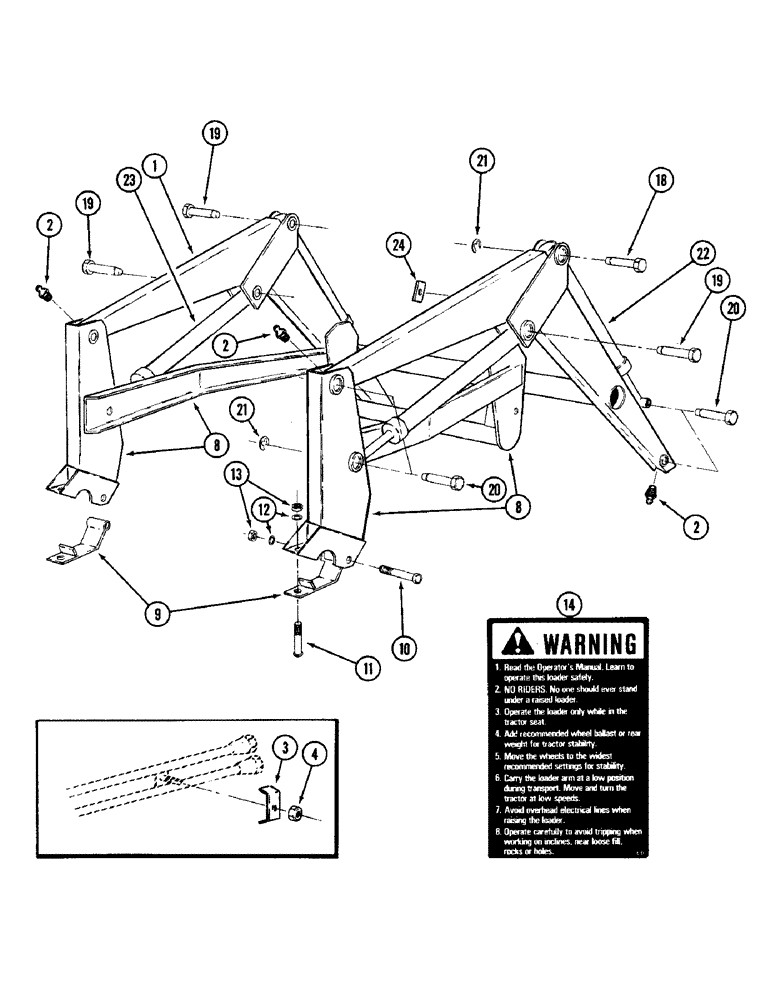

Запчасти Case IH 5QA (9-02) - BOOM AND SUPPORT, 5QA LOADER (09) - CHASSIS/ATTACHMENTS

1

1960642C1

BOOM

ASSEMBLY loader, Includes: Ref. 2 - 4

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

1960643C1

CLIP

tube

8шт.

4

425-105

NUT,5/16"-18, G5

8шт.

8

1960641C1

FRAME

SUPPORT ASSEMBLY boom, Includes: Ref. 9 - 14

1шт.

9

1960640C1

HINGE

boom support

2шт.

10

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

11

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

round head square neck, 5/8 NC x 5 inch

2шт.

12

492-11062

BEARING WASHER,5/8"

4шт.

13

425-1010

NUT,5/8"-11, G5

4шт.

14

REF

INSTRUCTION

DECAL - warning (See Figure 9-22)

1шт.

18

1960666C1

PIN

pivot, 1 x 3-7/8 inch

1шт.

19

1960665C1

PIN

pivot, 1 x 3-3/4 inch

3шт.

20

1960667C1

PIN

pivot, 1 x 4 inch

8шт.

21

933355R1

CIRCLIP,M20

retaining, external

12шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY bucket (See Figure 8-8)

2шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY boom (See Figure 8-12)

2шт.

24

1978887C1

PAD

pivot pin

6шт.
