Запчасти Case IH 5QA (8-22) - HYDRAULIC CONTROL VALVE - 1960658C1 (08) - HYDRAULICS

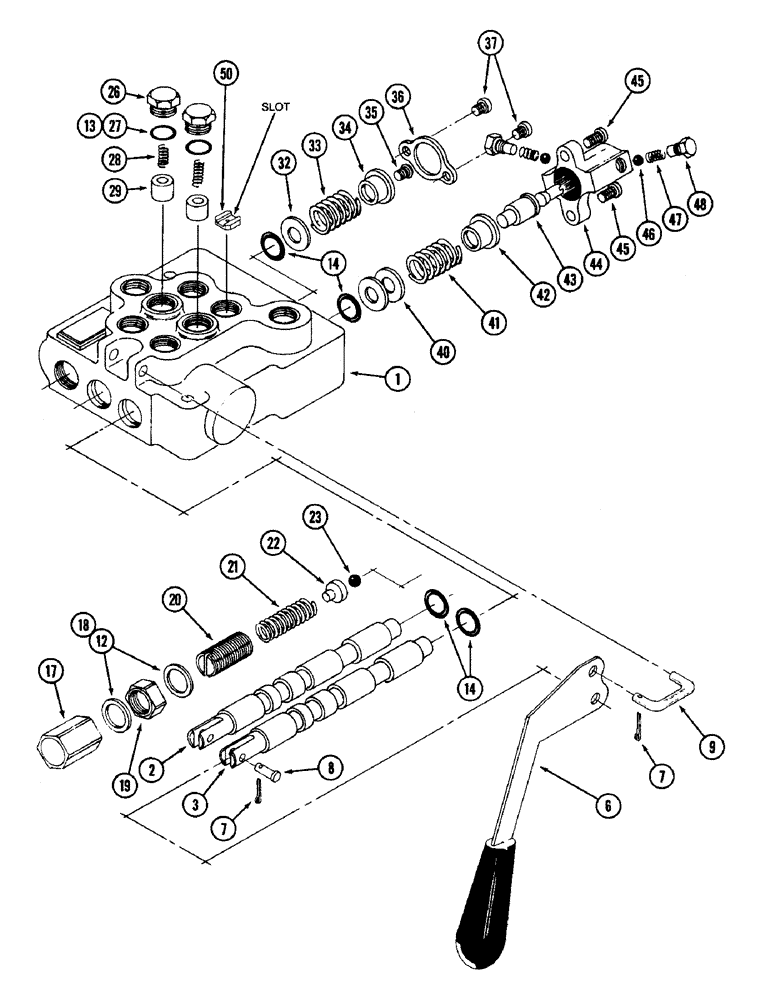

Схема запчастей Case IH 5QA - (8-22) - HYDRAULIC CONTROL VALVE - 1960658C1 (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1960658C1

VALVE

ASSEMBLY hydraulic control, Includes: Ref. 1 - 50

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve (Order 1960658C1)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket (Order 1960658C1)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL boom (Order 1960658C1)

1шт.

1960694C1

KIT

lever, dual control, Inclucdes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

LEVER dual control

2шт.

7

NSS

NOT SOLD SEPARAT

PIN cotter

4шт.

8

NSS

NOT SOLD SEPARAT

PIN clevis

2шт.

9

NSS

NOT SOLD SEPARAT

HOOK handle

2шт.

1960689C1

KIT

seal, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET relief valve

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING load check

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING spool

4шт.

1960693C1

KIT

relief valve, Includes: Ref. 17 - 23

1шт.

17

NSS

NOT SOLD SEPARAT

CAP relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET relief valve

2шт.

19

NSS

NOT SOLD SEPARAT

NUT hex jam

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING relief valve

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER ball, relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

BALL relief valve

1шт.

1960692C1

VALVE, CHECK

KIT load, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG load check

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING load check

2шт.

28

NSS

NOT SOLD SEPARAT

SPRING load check

2шт.

29

NSS

NOT SOLD SEPARAT

POPPET load check

2шт.

1960690C1

SPRING KIT

center, Includes: Ref. 32 - 37

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER return spring

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING return, spool

1шт.

34

NSS

NOT SOLD SEPARAT

SPACER return spring

1шт.

35

NSS

NOT SOLD SEPARAT

SCREW spacer

1шт.

36

NSS

NOT SOLD SEPARAT

CAP end

1шт.

37

NSS

NOT SOLD SEPARAT

SCREW end cap

2шт.

1960691C1

KIT

detent float, Includes: Ref. 40 - 48

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER return spring

2шт.

41

NSS

NOT SOLD SEPARAT

SPRING return, spool

1шт.

42

NSS

NOT SOLD SEPARAT

SPACER return spring

1шт.

43

NSS

NOT SOLD SEPARAT

SPOOL detent

1шт.

44

NSS

NOT SOLD SEPARAT

CAP end, detent

1шт.

45

NSS

NOT SOLD SEPARAT

SCREW end cap

2шт.

46

NSS

NOT SOLD SEPARAT

BALL detent

2шт.

47

NSS

NOT SOLD SEPARAT

SPRING detent ball

2шт.

48

NSS

NOT SOLD SEPARAT

PLUG detent ball

2шт.

50

1960688C1

PLATE

orifice (If equipped)

1шт.

Выбрано товаров: 44
