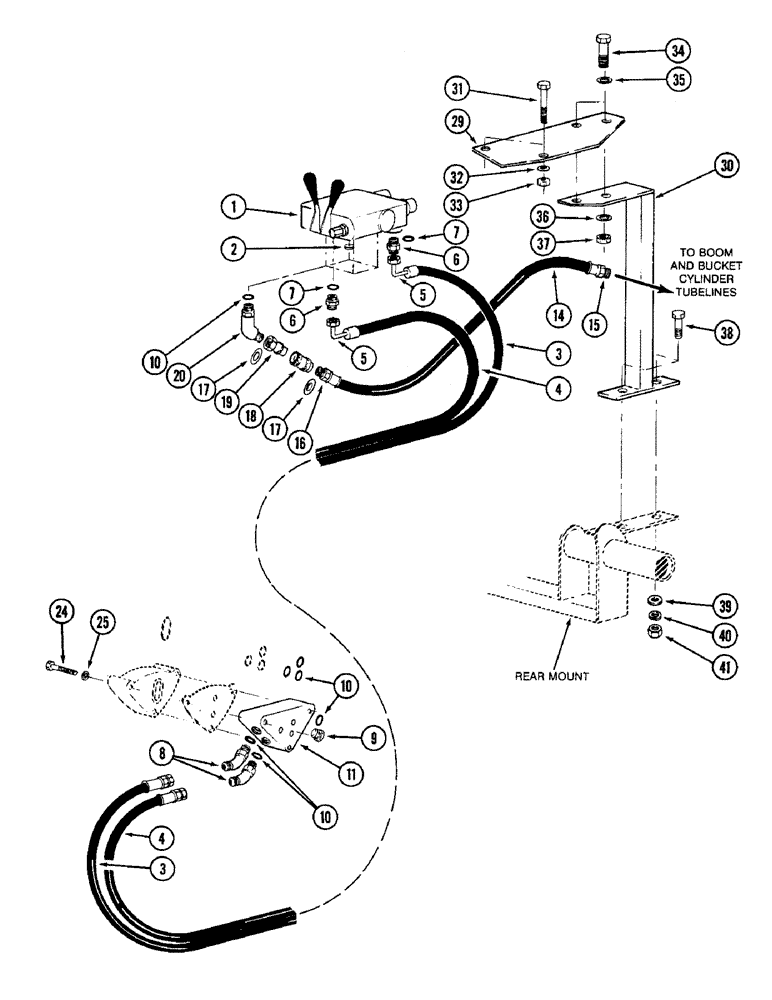

Запчасти Case IH 5QA (8-16) - CONTROL HYDRAULICS, 5QA LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY hydraulic control (See Figure 8-22)

1шт.

2

REF

INSTRUCTION

PLATE orifice (See Figure 8-22)

1шт.

3

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

pressure, 3/8 x 95 inch

1шт.

For initial service also order one 218-5044 and 218-980 elbow.

1шт.

4

810570C2

HYDRAULIC HOSE

ASSEMBLY return, 3/8 x 90 inch (If equipped)

1шт.

For initial service also order one 218-5044 and 218-980 elbow.

1шт.

5

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

ELBOW 90 degree, 9/16-18 inch flared

2шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16-18 flared x 3/4-16 inch o-ring boss

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

8

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 flared x 9/16-18 inch o-ring boss

2шт.

9

76349

PLUG,9/16" - 18 ORB

1шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

3шт.

11

1960659C1

VALVE

MANIFOLD hydraulic

1шт.

14

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

(Replaces 1277506C1)

4шт.

For initial service of 1277506C1 also order one 218-734 and 218-445 for each hose ordered. For initial service of 91163C1 also order one 218-734 and 218-1024 for each hose ordered.

1шт.

15

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR straight, 9/16-18 thread (Used with 91163C1)

4шт.

15

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR 9/16-18 inch flared (Used with 1277506C1)

4шт.

16

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

straight, 9/16-18 x 3/4 inch PT (Used with 91163C1)

4шт.

16

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

9/16-18 flared x 1/4 inch PT (Used with 1277506C1)

4шт.

17

1960687C1

PISTON RING SET

color coded, four pairs

1шт.

18

1349642C1

COUPLING

hydraulic, quick (Replaces 166122C92)

4шт.

19

166123C91

COUPLING

ASSEMBLY male, 1/4 inch PT (If equipped)

4шт.

20

1349641C1

ADAPTER

ELBOW 45 degree (Replaces 1960686C1)

4шт.

24

30013R1

BOLT,Hex, M8 x 1.25 x 75mm, Cl 10.9

hex, 5 x 75 mm

3шт.

25

892-11008

LOCK WASHER,8mm ID

3шт.

29

1960660C1

PLATE

valve (If equipped)

1шт.

30

1349640C1

STAND

valve (235 and 235H tractor) (Replaces 1960661C1)

1шт.

30

1973058C1

STAND

valve, 17-1/4 inch (234 tractor)

1шт.

31

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

hex, 1/4 NC x 2 inch

2шт.

32

492-11025

LOCK WASHER,1/4"

2шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat (13/32 x 13/16 x 1/16")

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

425-106

NUT,3/8"-16, Cl 5

2шт.

38

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat (13/32 x 13/16 x 1/16")

2шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

41

425-108

NUT,1/2" - 13, Gr 5

2шт.

214389

PLUG,3/4" - 16 ORB

1шт.

76349

PLUG,9/16" - 18 ORB

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.
