Запчасти Case IH 5QA (8-12) - BOOM CYLINDER, 5QA & 7QA LOADERS (08) - HYDRAULICS

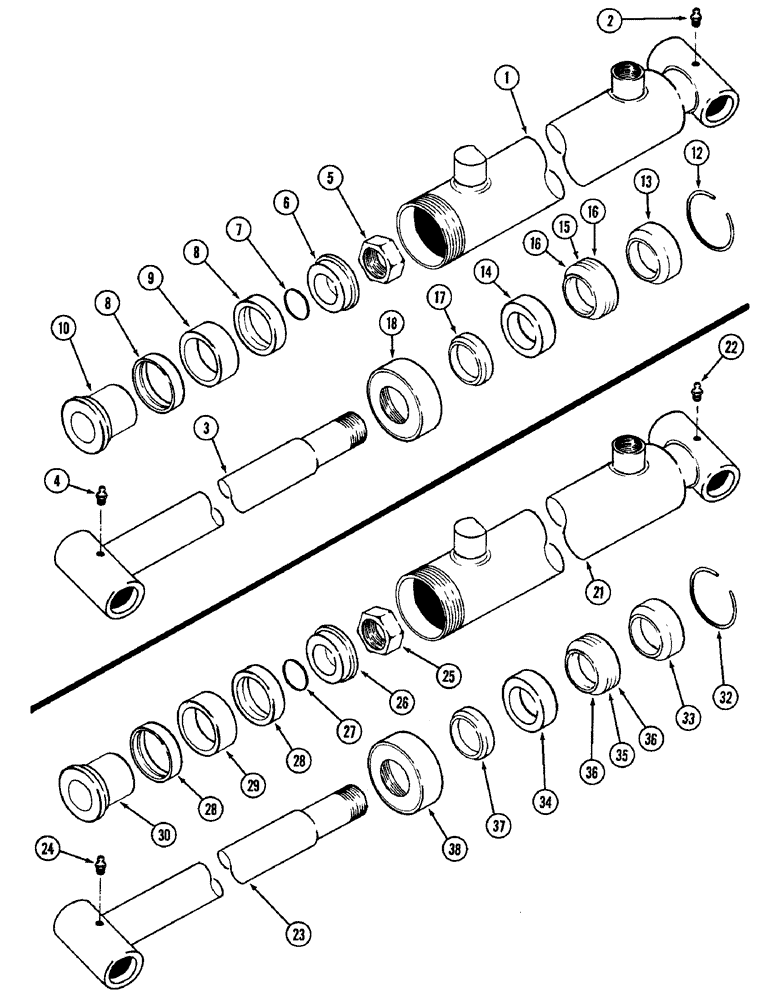

Схема запчастей Case IH 5QA - (8-12) - BOOM CYLINDER, 5QA & 7QA LOADERS (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1960653C1

CYLINDER ASSY.

CYLINDER ASSEMBLY boom, 1-3/4 x 13 inch, 5QA Loader, Includes: Ref. 1- 18

2шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY boom cylinder (Order 1960653C1), Includes: Ref. 2

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

1960655C1

ROD ASSY.

boom cylinder, Includes: Ref. 3

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

19638R1

LOCK NUT,3/4"-16, GB

hex lock, 3/4 inch NF

1шт.

6

1960662C1

PISTON

END

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal Kit, P/N 1960258C1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

10

1960657C1

PISTON

cylinder

1шт.

12

1960663C1

CLIP

WIRE retaining

1шт.

13

1960664C1

PACKING

GUIDE packing, male

1шт.

14

1958493C1

PACKING

GUIDE packing, female

1шт.

15

NSS

NOT SOLD SEPARAT

V-SEAL rubber

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

16

NSS

NOT SOLD SEPARAT

V-SEAL fiber

2шт.

Part of Seal Kit, P/N 1960258C1

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

18

1960656C1

NUT

cartridge

1шт.

1960258C1

SEAL KIT

seal, Includes: Ref. 7, 8, 9, 15, 16 and 17

1шт.

1969352C1

CYLINDER

ASSEMBLY boom, 1-3/4 x 16-1/2 inch, 7QA Loader, Includes: Ref. 21 - 38

2шт.

21

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY boom cylinder (Order 1969352C1), Includes: Ref. 22

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

23

1969353C1

ROD

ASSEMBLY boom cylinder, Includes: Ref. 24

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

25

19638R1

LOCK NUT,3/4"-16, GB

hex lock, 3/4 inch NF

1шт.

26

1960662C1

PISTON

END

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

28

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal Kit, P/N 1960258C1

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

30

1960657C1

PISTON

cylinder

1шт.

32

1960663C1

CLIP

WIRE retaining

1шт.

33

1960664C1

PACKING

GUIDE packing, male

1шт.

34

1958493C1

PACKING

GUIDE packing, female

1шт.

35

NSS

NOT SOLD SEPARAT

V-SEAL rubber

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

36

NSS

NOT SOLD SEPARAT

V-SEAL fiber

2шт.

Part of Seal Kit, P/N 1960258C1

1шт.

37

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

Part of Seal Kit, P/N 1960258C1

1шт.

38

1960656C1

NUT

cartridge

1шт.

1960258C1

SEAL KIT

seal, Includes: Ref. 27, 28, 29, 35, 36 and 37

1шт.

Выбрано товаров: 50
