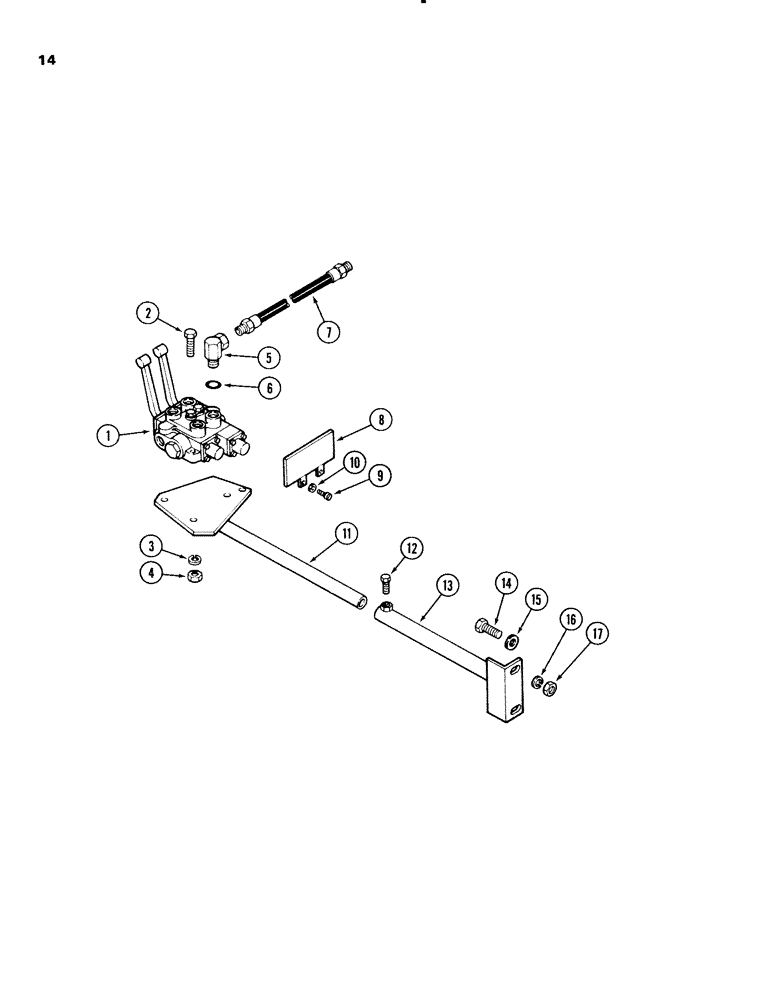

Запчасти Case IH 56L (14) - CONTROL VALVE AND HOSES (35) - HYDRAULIC SYSTEMS

1

T57496

VALVE

- control (See Figure 17)

1шт.

2

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

5

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 6

4шт.

7

T54431

HYDRAULIC HOSE,0.50" ID x 48.00"

0.50" ID x 48.00"

4шт.

8

T57543

MOUNTING PARTS

MOUNT - decal

1шт.

9

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine 1/4 x 1/2" NC pan head

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

T57542

MOUNTING PARTS

MOUNT - valve upper

1шт.

ANOTHER MOUNT USED (NOT A SUB) T57995.

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

13

T57534

MOUNTING PARTS

MOUNT - valve lower

1шт.

ANOTHER MOUNT USED (NOT A SUB)

1шт.

14

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

15

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

129-107

NUT,5/8"-11, G5

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
