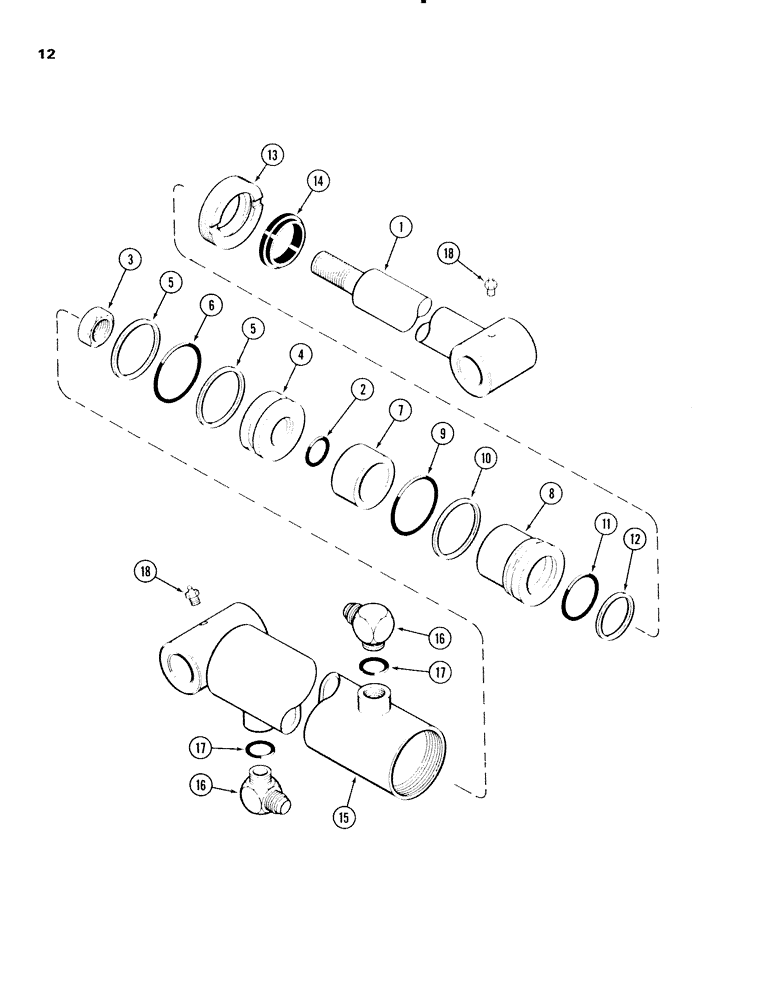

Запчасти Case IH 56L (12) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

T57510

CYLINDER

- hydraulic 2-1/4" (57.2 mm) complete, Includes: Ref. 1 - 15

2шт.

1

T57515

ROD

- piston

1шт.

2

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- 1-1/16 x 7/8 x 3/32" (27.0 x 22.2 x 2.4 mm)

1шт.

Part of Seal Kit, P/N T57521

1шт.

3

131-17

LOCK NUT

NUT - piston rod 7/8" NF

1шт.

4

T57516

PISTON

1шт.

5

D50254

BACK-UP RING

SEAL - backup

2шт.

Part of Seal Kit, P/N T57521

1шт.

6

F8083

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N T57521

1шт.

7

T57520

STOP

SPACER

1шт.

8

T57517

BUSHING

BEARING

1шт.

9

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2-1/4 x 2 x 1/8" (57.2 x 50.8 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T57521

1шт.

10

D36084

WASHER - backup, not serviced separately

1шт.

11

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-3/4 x 9/64" (37.7 x 44.5 x 3.6 mm)

1шт.

Part of Seal Kit, P/N T57521

1шт.

12

H745687

WASHER

SEAL - backup

1шт.

Part of Seal Kit, P/N T57521

1шт.

13

T57518

RETAINER

1шт.

14

T57528

SEAL - wiper, not serviced separately

1шт.

Part of Seal Kit, P/N T57521

1шт.

15

T57514

TUBE ASSY.

TUBE - cylinder

1шт.

16

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes: Ref. 17

4шт.

18

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

T57521

SEAL KIT

- seal, Includes: Ref. 2, 5, 6, 9, 10, 11, 12 and 14

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
