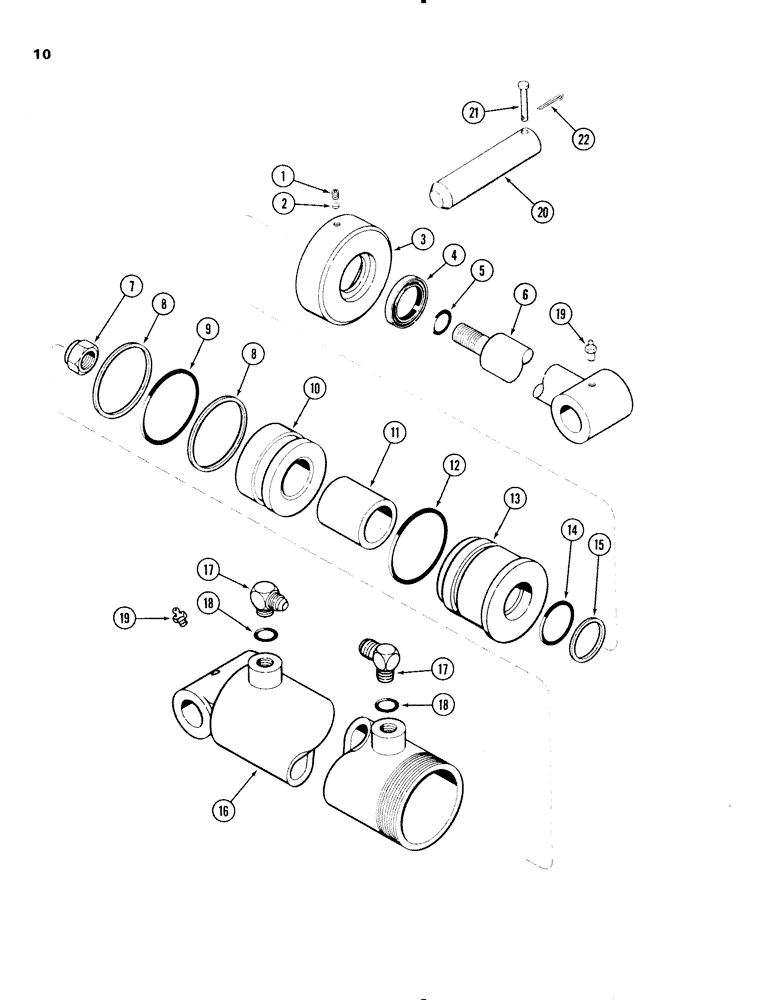

Запчасти Case IH 56L (10) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

T55923

CYLINDER

- hydraulic 2" (50.8 mm) complete, Inlcudes: Ref. 1 - 16

2шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4 x 1/4" socket head

1шт.

2

T55068

PLUG

- nylon

1шт.

Part of Seal Kit, P/N T55068

1шт.

3

T53356

CAP

HEAD CAP

1шт.

4

B17291

WIPER SEAL

SEAL - wiper

1шт.

Part of Seal Kit, P/N T55068

1шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 1 x 3/4 x 1/8" (25.4 x 19.1 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T55068

1шт.

6

T53896

ROD ASSY.

ROD - piston 1-1/4"

1шт.

7

131-909

LOCK NUT,3/4"-16

NUT - piston rod 3/4" NF

1шт.

8

B17296

BACK-UP RING

SEAL - backup

2шт.

Part of Seal Kit, P/N T55068

1шт.

9

T53353

O-RING,1.6" ID x 2.02" OD x 0.21"

- 1-5/8 ID x 3/16" (41.3 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T55068

1шт.

10

B17272

PISTON

1шт.

11

T55924

SPACER

1шт.

12

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- 2 x 1-3/4 x 1/8" (50.8 x 44.5 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T55068

1шт.

13

T53357

HEAD

- cylinder

1шт.

14

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- 1-1/2 x 1-1/4 x 1/8: (38.1 x 31.8 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T55068

1шт.

15

B17298

BACK-UP RING

SEAL - backup

1шт.

Part of Seal Kit, P/N T55068

1шт.

16

T53895

TUBE ASSY.,2.373" OD x 28.75" L

TUBE - cylinder

1шт.

17

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes: Ref. 18

4шт.

19

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

20

T50016

PIN

- bucket 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

2шт.

21

T50008

PIN

- clevis

2шт.

22

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

T63155

KIT

- seal, Includes: Ref. 2, 4, 5, 8, 9, 12, 14 and 15

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
