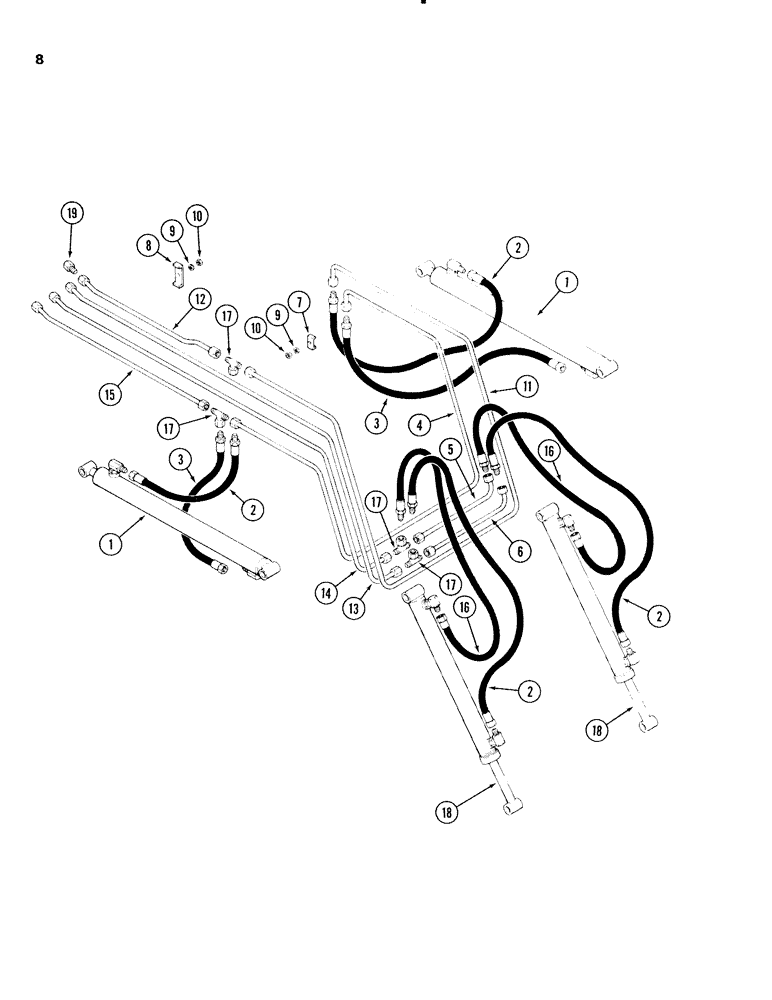

Запчасти Case IH 56L (08) - HYDRAULIC TUBES AND HOSE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

T57510

CYLINDER

- lift (See Figure 13)

2шт.

2

L13746

HOSE

- 1/2 x 24-1/2" (12.7 x 622.3 mm)

4шт.

3

D27989

HOSE

- 1/2 x 15" (12.7 x 381.0 mm)

2шт.

4

T57505

TUBE

- hydraulic

1шт.

5

T55861

TUBE ASSY.,0.625" OD x 28.125, 3" L

TUBE - hydraulic

1шт.

6

T55858

TUBE,0.625" OD x 25.5, 2.5" L

- hydraulic

1шт.

7

T50064

CLAMP

- tube

1шт.

8

T53116

CLAMP

- tube

5шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

11

T57508

TUBE,0.625" OD

- hydraulic

1шт.

12

T57475

TUBE ASSY.,0.625" OD x 28.25, 3" L

TUBE - hydraulic

1шт.

13

T57500

TUBE ASSY.

TUBE - hydraulic

1шт.

14

T57501

TUBE,0.625" OD x 60.625, 31.312" L

- hydraulic

1шт.

15

T55860

TUBE,0.625" OD x 29.5, 3" L

- hydraulic

1шт.

16

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- 1/2 x 26" (12.7 x 660.4 mm)

2шт.

17

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

FITTING - hydraulic tube

4шт.

18

T55923

CYLINDER

- bucket (See Figure 11)

2шт.

19

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

FITTING - tube 7/8 to 1/2"

4шт.
