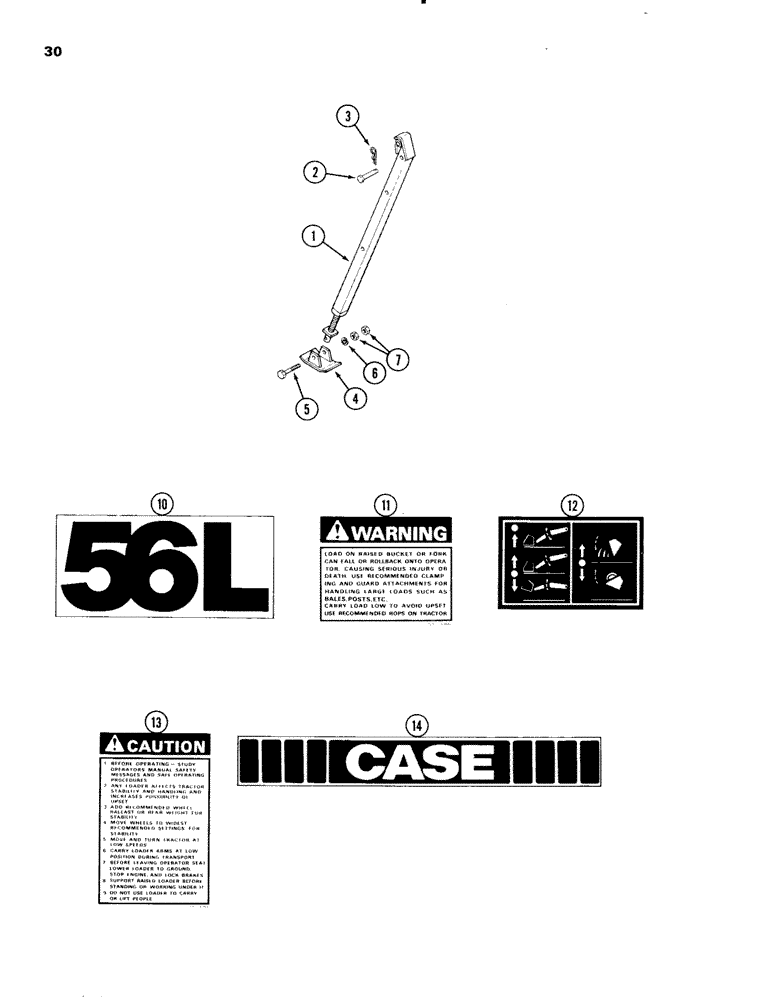

Запчасти Case IH 56L (30) - PARKING STAND (82) - FRONT LOADER & BUCKET

1

T57474

STAND

parking

2шт.

2

H120683

PIN,15.88mm OD x 94.06mm L

clevis

4шт.

3

T54573

PIN

COTTER

4шт.

4

T54570

FOOT

SUPPORT - stand

2шт.

5

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

321-6331

DECAL

model 56L

2шт.

11

321-6366

DECAL

warning

1шт.

12

321-6404

DECAL

loader valve

1шт.

13

321-6367

DECAL

caution

1шт.

14

321-6334

DECAL

case

1шт.

321-5634

safety (French) Not illustrated

1шт.
