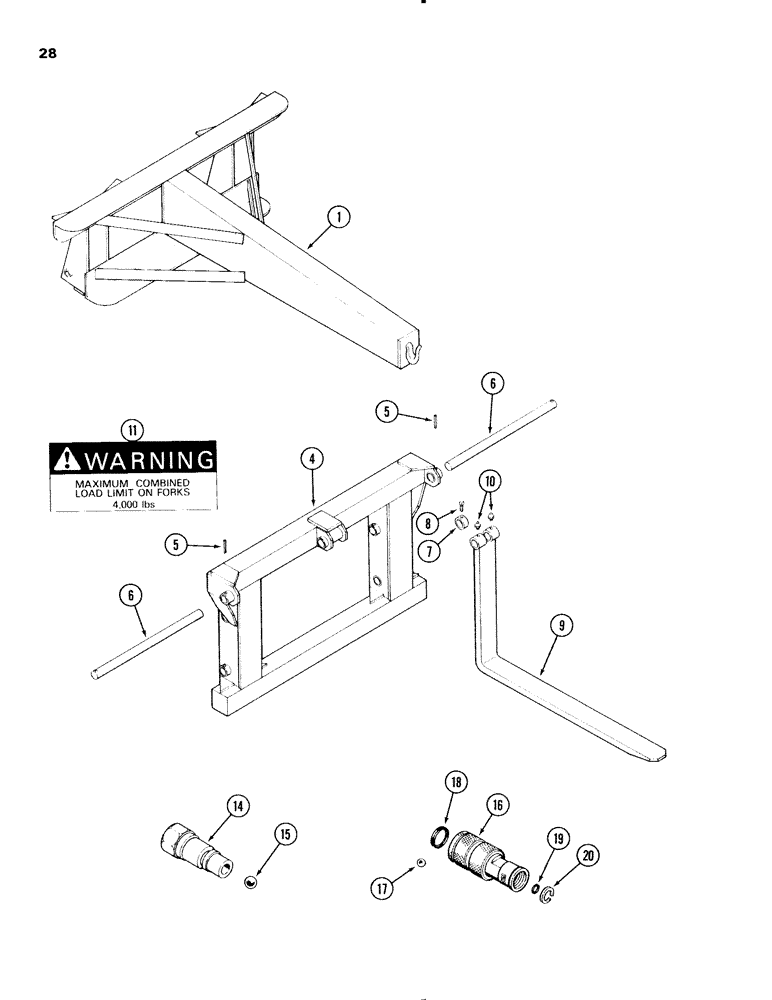

Запчасти Case IH 56L (28) - LIFT BOOM (82) - FRONT LOADER & BUCKET

1

T94861

BOOM - lift (Machinery Item)

1шт.

4

T54639

FRAME

main, fork lift attachment

1шт.

5

138-325

ROLL PIN - 7/16 x 2-1/4", fork lift attachment

2шт.

6

T54641

PIN

fork lift attachment

2шт.

7

T54642

BUSHING

fork lift attachment

2шт.

8

181-805

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

3/8 x 1/2" NC cup point, fork lift attachment

2шт.

9

T54640

TOOTH

fork lift attachment

2шт.

10

219-15

LUBE NIPPLE,5/16" NPTF

grease 5/16" straight drive, fork lift attachment

4шт.

11

321-4735

DECAL

PLATE - decal, limit 4000 pounds (1813.4 kg)

1шт.

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

drive #6 x 1/4" (Not illustrated), fork lift attachment

2шт.

14

A147889

COUPLING, BREAK AWAY

ASSEMBLY - male, hyd, Includes: Ref. 15

1шт.

15

211-316

BALL,17/32" Dia

17/32" (13.5 mm) diameter, hyd coupler

1шт.

16

A147888

BREAKER POINTS

ASSEMBLY - female (Order A147741), hyd, Includes: Ref. 17 - 20

1шт.

17

211-355

BALL

3/16" (4.8 mm) diameter (Order 211-5), hyd coupler

10шт.

A47220

GASKET KIT

repair (Not illustrated), hyd coupler, Includes: Ref. 18 - 20

1шт.

18

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

body, hyd coupler

1шт.

19

A47222

SEAL

poppet, hyd coupler

1шт.

20

A45603

RING, LOCKING

(Order A47220), hyd coupler

1шт.
