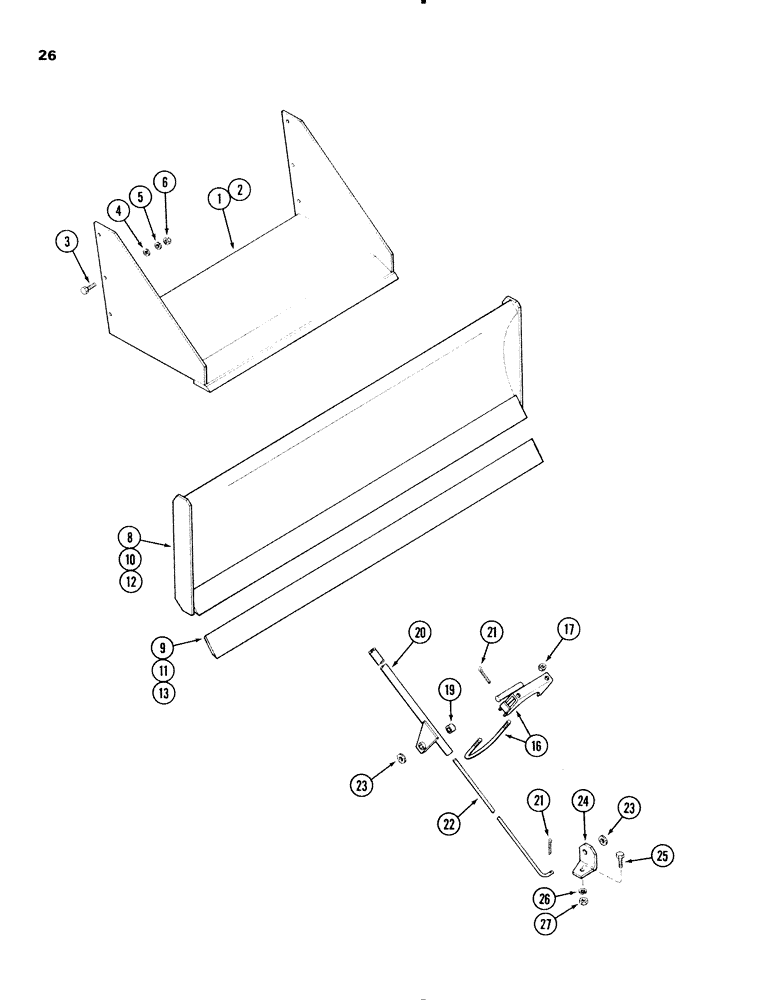

Запчасти Case IH 56L (26) - MANURE FORK DIRT PLATE, 48 INCH, 1219.2 M (82) - FRONT LOADER & BUCKET

1

T52183

PLATE - dirt

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

4

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

2

T52178

PLATE - dirt, 60" (1524.0 mm)

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

60" (1524.0 mm) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge, 60" (1524.0 mm)

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 60" (1524.0 mm) 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 60" (1524.0 mm) 3/8"-16, G5

6шт.

8

T94862

SCRAPER ASSEMBLY - dirt six foot (1.8 m) with replaceable edge (Machinery Item), Includes: Ref. 9

1шт.

9

T57065

EDGE

replaceable 72" (1828.8 mm), dirt scrapers

1шт.

10

T94863

SCRAPER ASSEMBLY - dirt seven foot (2.1 m) with replaceable edge (Machinery Item), Includes: Ref. 11

1шт.

11

T50012

EDGE

replaceable 84" (2133.6 mm), dirt scrapers

1шт.

12

T94864

SCRAPER ASSEMBLY - dirt eight foot (2.4 m) with replaceable edge (Machinery Item), Includes: Ref. 13

1шт.

13

T57058

EDGE

replaceable 96" (2438.4 mm), dirt scrapers

1шт.

16

T57541

CLAMP

ASSEMBLY, bucket level indicator, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

NUTS, bucket level indicator

2шт.

19

T57063

SPACER

bucket level indicator

1шт.

20

T55515

SUPPORT TUBE

support, bucket level indicator

1шт.

21

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Bucket level indicator 1/8" x 1"

2шт.

22

T57488

ROD

indicator, bucket level indicator

1шт.

23

195-106

WASHER,1/2"

1-3/8 x 9/16" x 12 gauge, bucket level indicator

2шт.

24

T57062

BRACKET

rod pivot, bucket level indicator

1шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Bucket level indicator Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket level indicator 3/8"

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Bucket level indicator 3/8"-16, G5

1шт.
