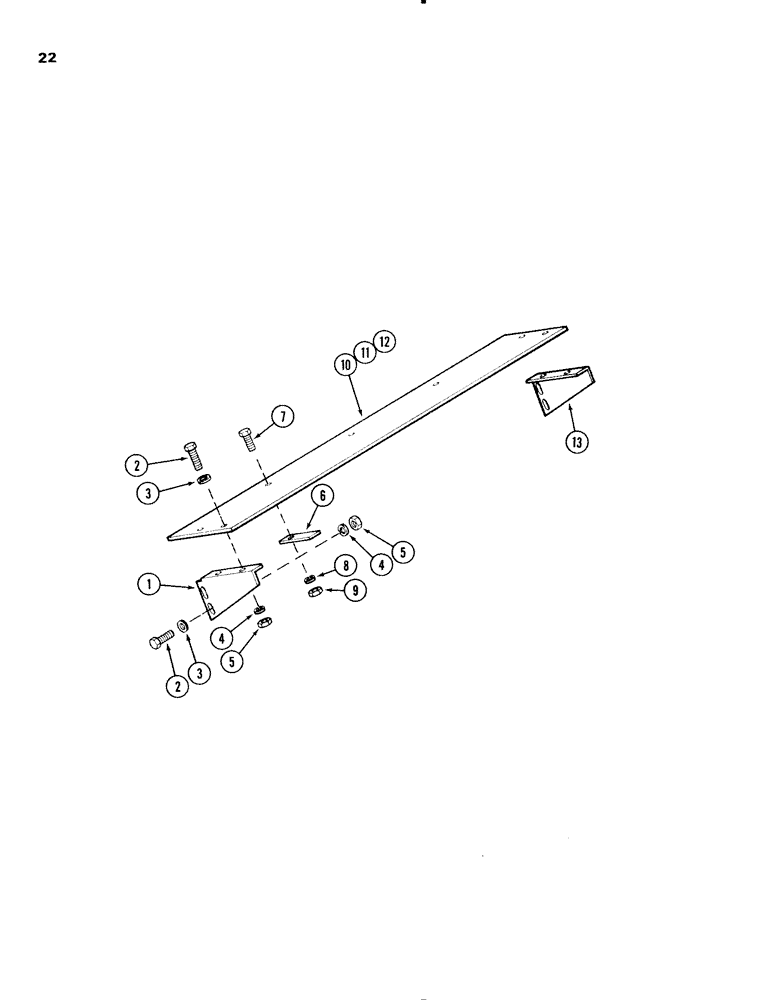

Запчасти Case IH 56L (22) - GUARD PLATE, 60 INCH, 1524.0 MM, BUCKET (82) - FRONT LOADER & BUCKET

1

T50027

ANGLE

PLATE - end RH

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

3

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

6

T50028

4шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

T50025

PLATE

guard

1шт.

13

T50026

end LH

1шт.

1

T50027

ANGLE

PLATE - end RH, 66" (1676.4 mm) bucket

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

66" (1676.4 mm) bucket Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

3

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge, 66" (1676.4 mm) bucket

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 66" (1676.4 mm) bucket 3/8"

8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 66" (1676.4 mm) bucket 3/8"-16, G5

8шт.

6

T50028

66" (1676.4 mm) bucket

5шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

66" (1676.4 mm) bucket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 66" (1676.4 mm) bucket 3/8"

5шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 66" (1676.4 mm) bucket 3/8"-16, G5

5шт.

11

T52180

PLATE - guard, 66" (1676.4 mm) bucket

1шт.

13

T50026

end LH, 66" (1676.4 mm) bucket

1шт.

1

T50027

ANGLE

PLATE - end RH, 72" (1828.8 mm) bucket

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

72" (1828.8 mm) bucket Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

3

195-104

WASHER,3/8"

1 x 7/16" x 14 gauge, 72" (1828.8 mm) bucket

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 72" (1828.8 mm) bucket 3/8"

8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 72" (1828.8 mm) bucket 3/8"-16, G5

8шт.

6

T50028

72" (1828.8 mm) bucket

5шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

72" (1828.8 mm) bucket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 72" (1828.8 mm) bucket 3/8"

5шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 72" (1828.8 mm) bucket 3/8"-16, G5

5шт.

12

T50029

PLATE

guard, 72" (1828.8 mm) bucket

1шт.

13

T50026

end LH, 72" (1828.8 mm) bucket

1шт.
