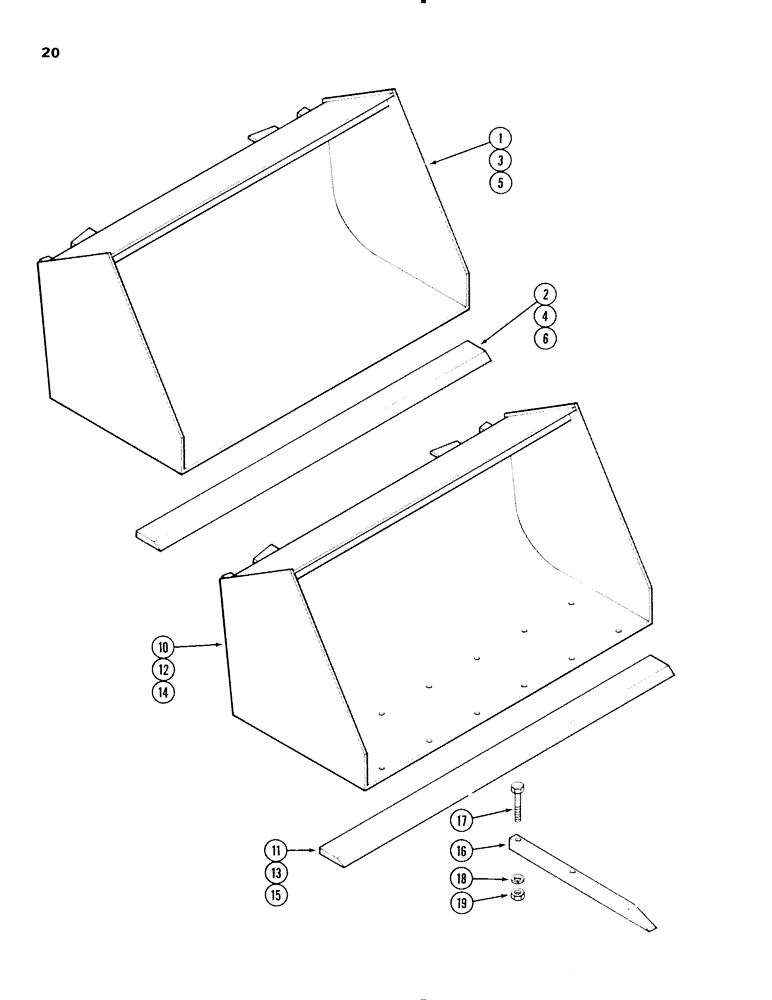

Запчасти Case IH 56L (20) - MATERIALS BUCKETS (82) - FRONT LOADER & BUCKET

1

T95034

BUCKET ASSEMBLY - 60" (1524.0 mm) with replaceable edge (Machinery Item), Includes: Ref. 2

1шт.

2

T50013

EDGE

replaceable 68" (1727.2 mm)

1шт.

3

T95037

BUCKET ASSEMBLY - 66" (1676.4 mm) with replaceable edge (Machinery Item), Includes: Ref. 4

1шт.

4

T52179

EDGE

replaceable 74" (1879.6 mmm)

1шт.

5

T94845

BUCKET ASSEMBLY - 72" (1828.8 mm) with replaceable edge (Machinery Item), Includes: Ref. 6

1шт.

6

T50014

EDGE

replaceable 80" (2032.0 mm)

1шт.

10

T95035

BUCKET ASSEMBLY - 60" (1524.0 mm) drilled for tines with replaceable edge (Machinery Item), material, Includes: Ref. 11

1шт.

11

T50013

EDGE

replaceable 68" (1727.2 mm), material buckets w/ tines

1шт.

16

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 60" (1524.0 mm) bucket (Machinery Item), Includes: Ref. 17 - 19

8шт.

17

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Material buckets w/ tines Hex, 3/8"-16 x 2 1/2", G5

2шт.

18

92-6

LOCK WASHER,3/8"

material buckets w/ tines 3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

3/8" NC hex, material buckets w/ tines

2шт.

12

T95038

BUCKET ASSEMBLY- 66" (1676.4 mm) drilled for tines with replaceable edge (Machinery Item), Includes: Ref. 13

1шт.

13

T52179

EDGE

replaceable 74" (1879.6 mm), material buckets w/ tines

1шт.

16

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 66" (1676.4 mm) bucket (Machinery Item), material, Includes: Ref. 17 - 19

8шт.

17

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Material buckets w/ tines Hex, 3/8"-16 x 2 1/2", G5

2шт.

18

92-6

LOCK WASHER,3/8"

material buckets w/ tines 3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

3/8" NC hex, material buckets w/ tines

2шт.

14

T94846

BUCKET ASSEMBLY - 72" (1828.8 mm) drilled for tines with replaceable edge (Machinery Item), Includes: Ref. 15

1шт.

15

T50014

EDGE

replaceable 80" (2032.0 mm), material buckets w/ tines

1шт.

16

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 72" (1828.8 mm) bucket (Machinery Item), material, Includes: Ref. 17 - 19

8шт.

TINE IS AVAILABLE T51043

1шт.

17

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Material buckets w/ tines Hex, 3/8"-16 x 2 1/2", G5

2шт.

18

92-6

LOCK WASHER,3/8"

material buckets w/ tines 3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

3/8" NC hex, material buckets w/ tines

2шт.
