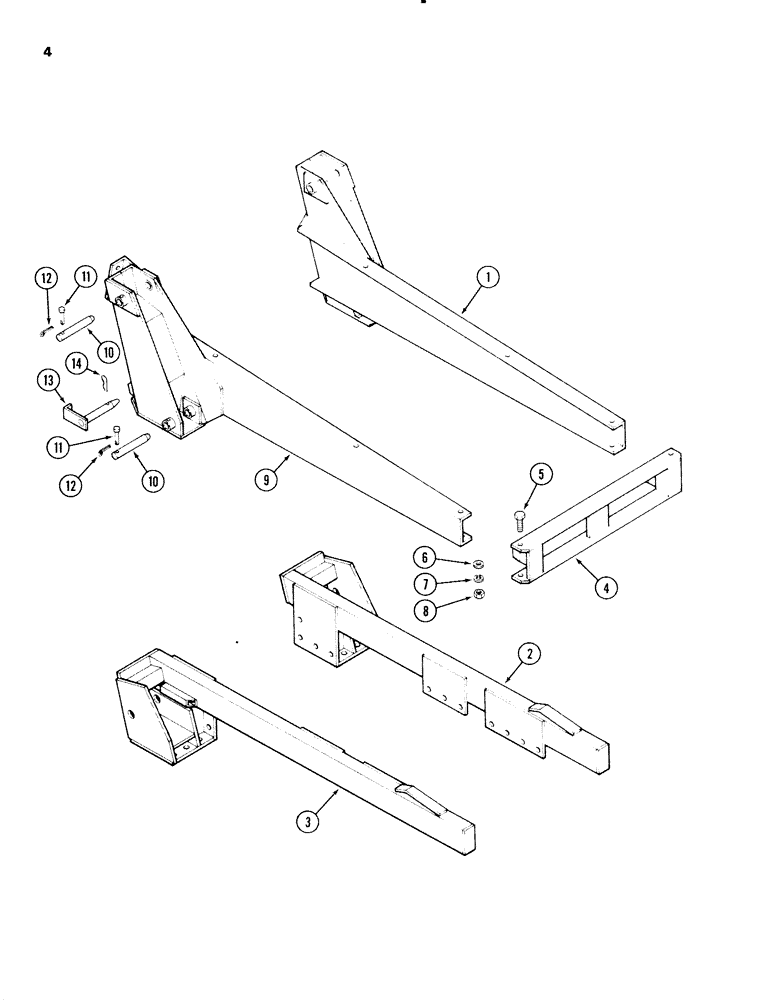

Запчасти Case IH 56L (04) - SUPPORTS (82) - FRONT LOADER & BUCKET

1

T57506

FRAME

SUPPORT - left outer

1шт.

2

T57511

RAIL

- left inner

1шт.

3

T57512

RAIL

- right inner

1шт.

4

T57509

BUMPER

1шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

9

T57507

FRAME

SUPPORT - right outer

1шт.

10

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

4шт.

11

T50008

PIN

- clevis

4шт.

12

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

13

T57499

PIN

- attaching

2шт.

14

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), Int, 7/16" x .177"

2шт.

BUMPER ADOPTED, USE IF BETTER LOAD TO BUMPER CLEARANCE IS REQUIRED T58034

1шт.
