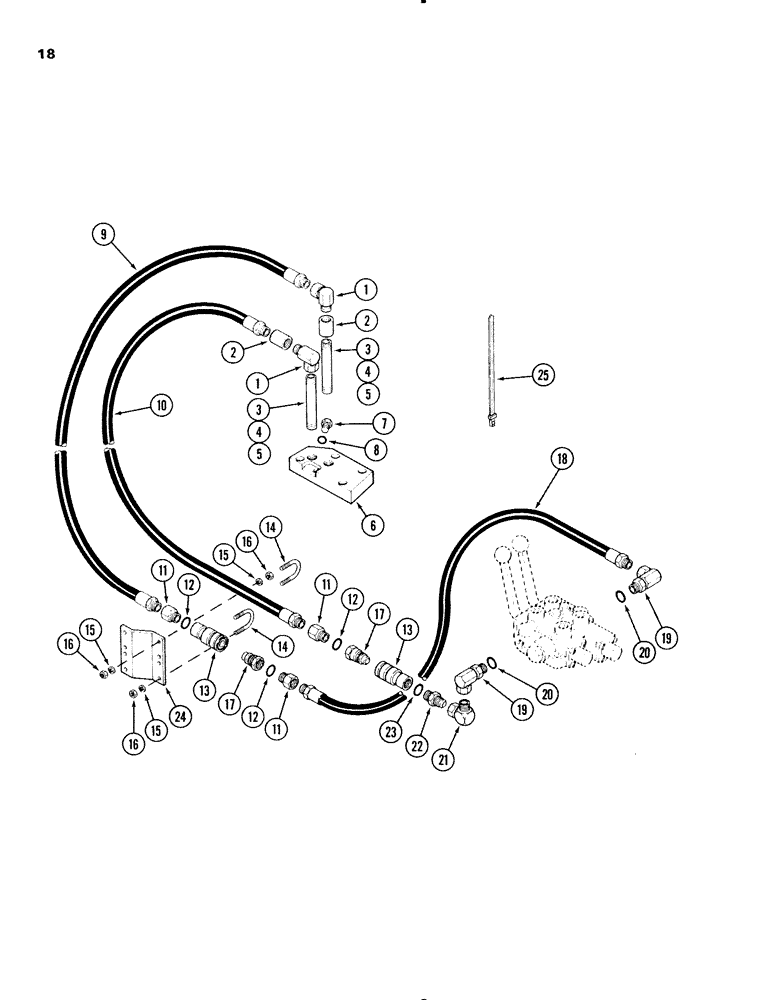

Запчасти Case IH 56L (18) - POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- swivel 1/2 x 1/2"

2шт.

2

221-338

COUPLING,Pipe, 1/2" NPT

COUPLER - pipe 1/2"

2шт.

3

221-197

PIPE,Nipple, 1/2" NPT x 5 1/2"

NIPPLE - pipe 1/2 x 5-1/2" (with one remote valve)

2шт.

4

221-194

PIPE,Nipple, 1/2" NPT x 4"

NIPPLE - pipe 1/2 x 4" with two remote valves)

2шт.

5

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - pipe 1/2 x 2-1/2" (with three remote valves)

2шт.

6

T57491

COVER

- valve power beyond

1шт.

7

76349

PLUG,9/16" - 18 ORB

Assy, Valve cover, Incl. Ref. 8 Hex Hd, 9/16"-18 ORB

1шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.9 x 1.98 mm)

1шт.

9

T54431

HYDRAULIC HOSE,0.50" ID x 48.00"

0.50" ID x 48.00"

1шт.

10

T57486

HOSE ASSY.

HOSE - 1/2 x 72" (12.7 x 1818.8 mm)

1шт.

11

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 12

3шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 15/16 x 3/4 x 3/32" (23.8 x 19.1 x 2.4 mm)

1шт.

13

A147888

BREAKER POINTS

COUPLER - female (See Figure 29)

2шт.

14

A66788

CLAMP

U-BOLT

2шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

17

A147889

COUPLING, BREAK AWAY

COUPLER - male (See Figure 29)

2шт.

18

T57489

HOSE

- 1/2 x 36" (12.7 x 914.4 mm)

1шт.

19

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 20

2шт.

21

218-998

ELBOW,90 Degree, 7/8"-14 Sw x 1/2" NPT

- swivel 1/2 x 7/8"

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 15/16 x 3/4 x 3/32" (23.8 x 19.1 x 2.4 mm)

1шт.

24

T55223

BRACKET

- fender

1шт.

25

T54520

STRAP

- nylon tie

2шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
