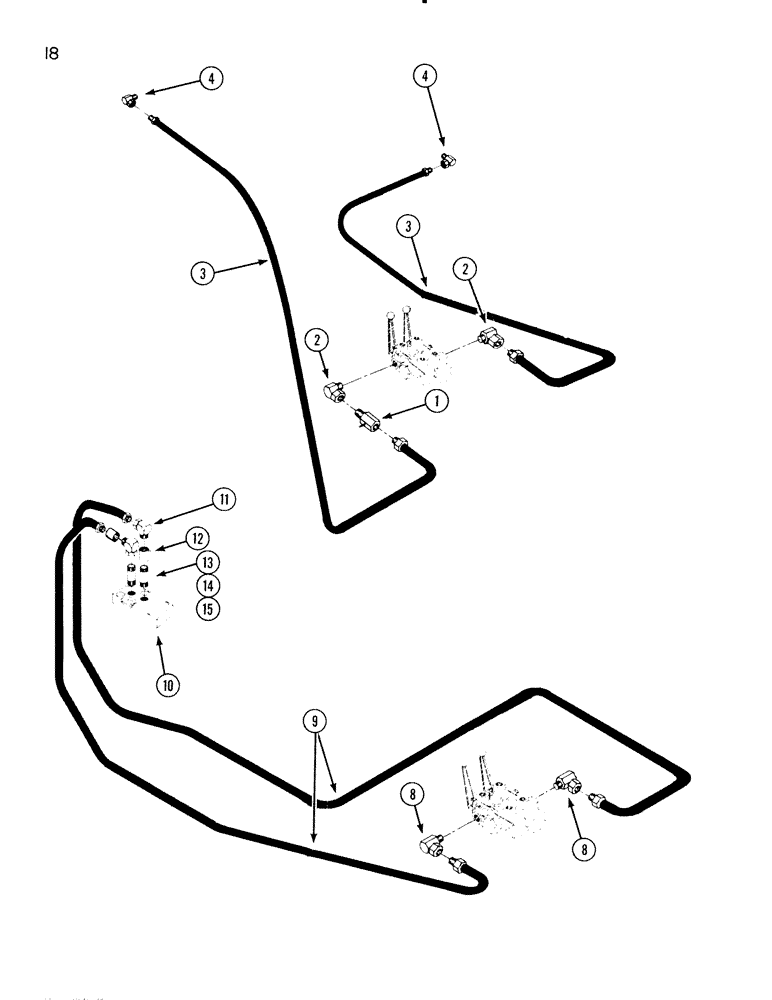

Запчасти Case IH 54L (18) - REMOTE OIL SUPPLY TO LOADER VALVE (35) - HYDRAULIC SYSTEMS

1

T53145

CHECK VALVE

1/2" pipe

1шт.

2

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

90 deg. x 3/4" o-ring

2шт.

3

T58093

HYDRAULIC HOSE,94.00"

2шт.

4

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 deg. x 1/2" pipe

2шт.

8

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

90 deg. x 3/4" o-ring, pwr beyond oil supply to loader valve

2шт.

9

T58093

HYDRAULIC HOSE,94.00"

Power Beyond Oil Supply to Loader Valve 94.00"

2шт.

10

T57491

COVER

BLOCK - power beyond oil supply to loader valve

1шт.

11

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - 90 deg. x 1/2" pipe, pwr beyond oil supply to loader valve

2шт.

12

221-338

COUPLING,Pipe, 1/2" NPT

COUPLER - pipe x 1/2", pwr beyond oil supply to loader valve

2шт.

13

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

1/2" x 2-1/2" (with three remote valves), pwr beyond oil supply to loader valve

2шт.

14

221-194

PIPE,Nipple, 1/2" NPT x 4"

1/2" x 4" (with two remote valves), pwr beyond oil supply to loader valve

2шт.

15

221-199

1/2" x 5-1/2" (with one remote valve), pwr beyond oil supply to loader valve Nipple, 1/2" NPT x 6 1/2"

2шт.
