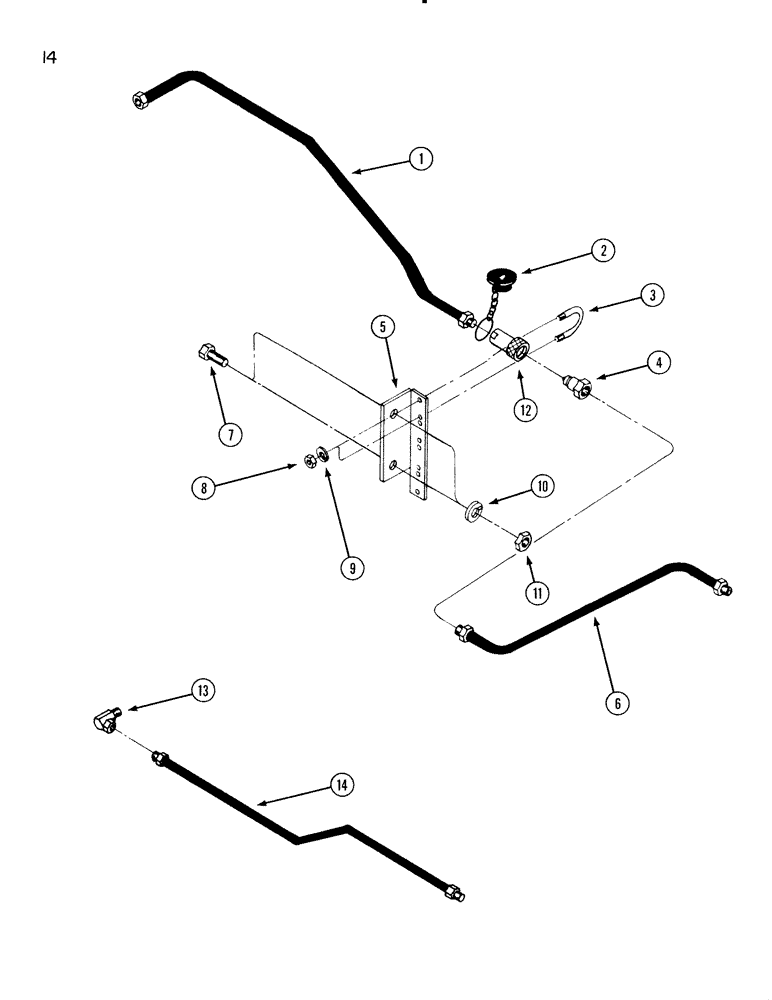

Запчасти Case IH 54L (14) - TRACTOR REMOTE, TEE FITTING (35) - HYDRAULIC SYSTEMS

T58090

HYDRAULIC HOSE,86.00"

4шт.

2

T57615

PLUG

quick coupler

4шт.

3

A66788

CLAMP

BOLT - 1/4" U

4шт.

4

H049726

COUPLER - male

4шт.

5

T58091

MOUNTING PARTS

coupler quick

1шт.

6

T58089

HOSE ASSY.

3/8" x 54" (9.5 x 1371.6 mm)

4шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

H049718

COUPLER - female

4шт.

13

T50083

FITTING - 90 deg. x 1/2" pipe, trac remote quick coupler

4шт.

14

T58088

HOSE

- 3/8" x 144" (9.5 x 3657.6 mm), trac remote quick coupler

4шт.
