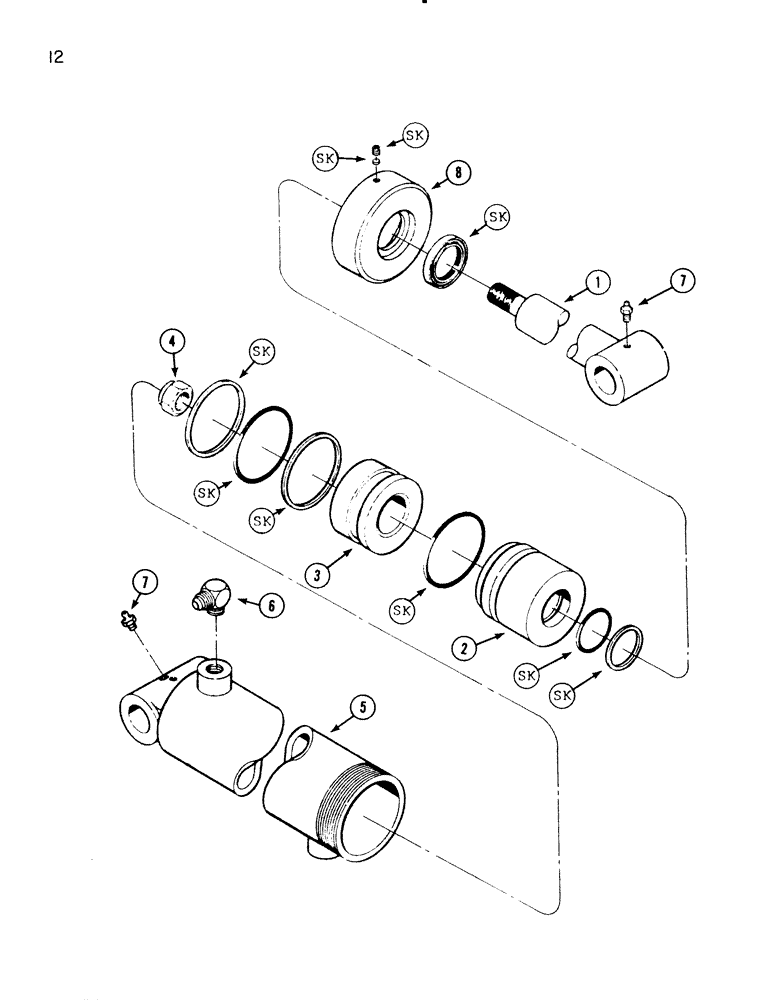

Запчасти Case IH 54L (12) - CYLINDER ATTACHMENT (35) - HYDRAULIC SYSTEMS

T58053

CYLINDER

- attachment 2" (50.8 mm)

2шт.

1

T58078

ROD ASSY.

ROD - piston

1шт.

MEASURES 1 1/4" x 27 3/4"

1шт.

2

T53357

HEAD

- cylinder

1шт.

3

B17272

PISTON

1шт.

4

131-909

LOCK NUT,3/4"-16

NUT - piston 3/4" NF

1шт.

5

T58079

CYLINDER

TUBE - cylinder

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 deg. x 9/16" o-ring

4шт.

7

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease

4шт.

8

T53356

CAP

HEAD CAP

1шт.

sk

T58080

SEAL,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

- seal (includes all Refs. with SK)

1шт.
