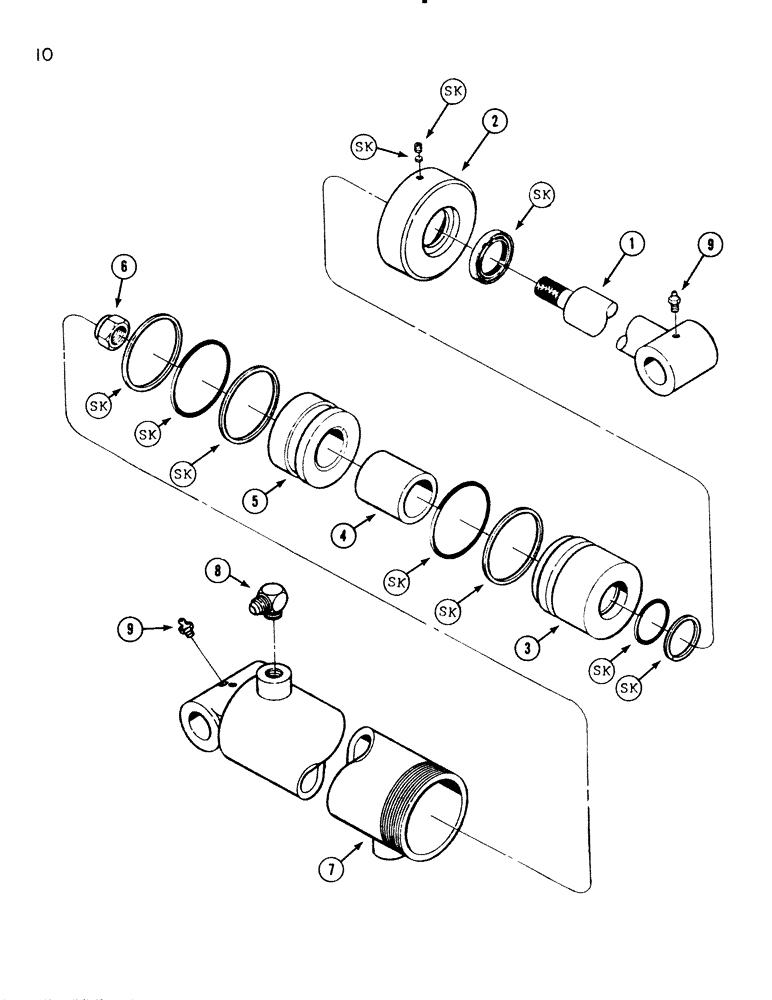

Запчасти Case IH 54L (10) - CYLINDER LIFT (35) - HYDRAULIC SYSTEMS

T58052

CYLINDER

- lift 2-1/4" (57.2 mm)

2шт.

1

T58072

ROD ASSY.

ROD - piston

1шт.

MEASURES 1 1/2" x 29 1/4"

1шт.

2

T58070

CAP

HEAD CAP

1шт.

3

T58071

HEAD (CYLINDER)

HEAD - cylinder

1шт.

4

T55637

SPACER

1шт.

5

T58069

PISTON

1шт.

6

131-909

LOCK NUT,3/4"-16

NUT - piston rod 3/4" NF

1шт.

7

T58073

TUBE

- cylinder

1шт.

8

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 deg. x 3/4" o-ring

4шт.

9

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease

4шт.

sk

T58074

SEAL KIT

- seal (includes all Refs. with SK)

1шт.
