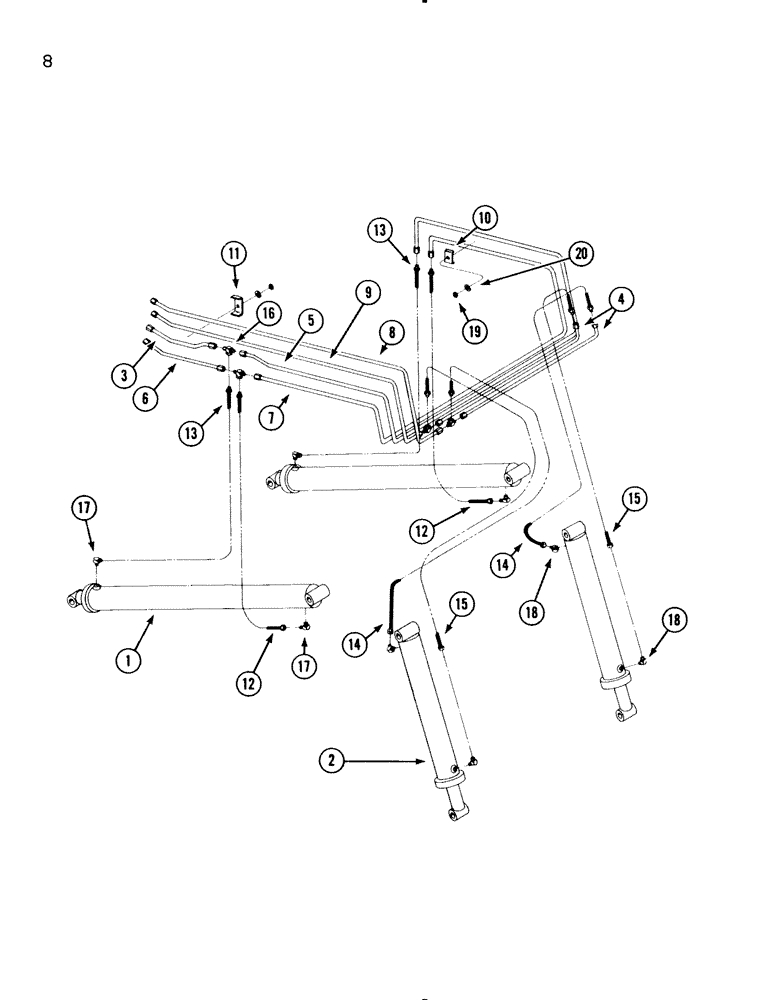

Запчасти Case IH 54L (08) - HYDRAULIC TUBES AND HOSES (35) - HYDRAULIC SYSTEMS

1

T58052

CYLINDER

- lift (see Figure 11)

2шт.

2

T58053

CYLINDER

- attachment (see Figure 13)

2шт.

3

T58054

TUBE ASSY.,17" L

TUBE - hydraulic

1шт.

4

T58055

TUBE ASSY.,34" L

TUBE - hydraulic

2шт.

5

58056

TUBE - hydraulic

1шт.

6

T58057

TUBE ASSY.,19" L

TUBE - hydraulic

1шт.

7

T58058

TUBE ASSY.

TUBE - hydraulic

1шт.

8

T58060

TUBE ASSY.

TUBE - hydraulic

1шт.

9

T58059

TUBE ASSY.

TUBE - hydraulic

1шт.

10

T50064

CLAMP

- tube

1шт.

11

T58083

CLAMP

- tube

4шт.

12

T58067

HYDRAULIC HOSE,14.00"

2шт.

13

T58066

HYDRAULIC HOSE,19.00"

2шт.

14

T58065

HYDRAULIC HOSE,15.69"

2шт.

15

T58064

HYDRAULIC HOSE,25.69"

2шт.

16

T58068

FITTING

- tee

4шт.

17

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 deg. x 3/4" o-ring

4шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - 90 deg. x 9/16" o-ring

4шт.

19

219-103

FITTING

NUT - 3/8" NC hex

5шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.
