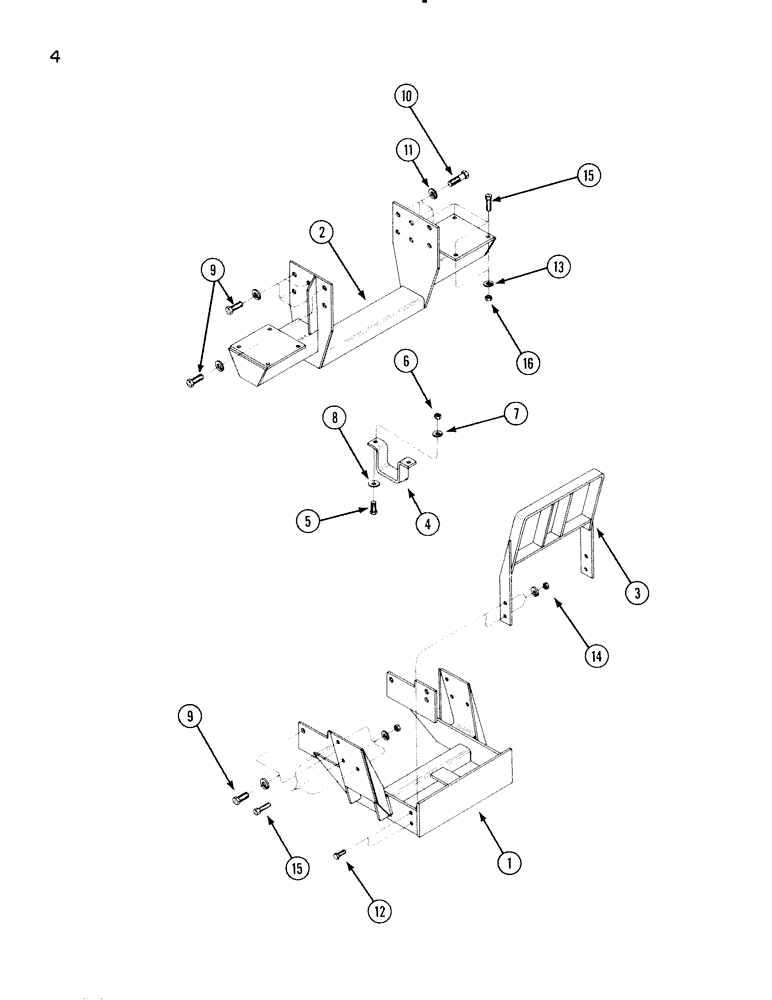

Запчасти Case IH 54L (04) - 1190 AND 1194 MOUNTING BRACKETS (82) - FRONT LOADER & BUCKET

1

T58044

BRACKET

- front

1шт.

2

T58045

BRACKET

- center

1шт.

3

T58043

GUARD

- grill

1шт.

4

T58042

MAKING-UP

RELOCATOR - tool box

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

6

12--103

NUT - 3/8" NC hex

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

195-104

WASHER,3/8"

- 1" x 7/16" x 14 gauge

2шт.

9

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

14шт.

10

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

18шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

14шт.

16

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC

14шт.
