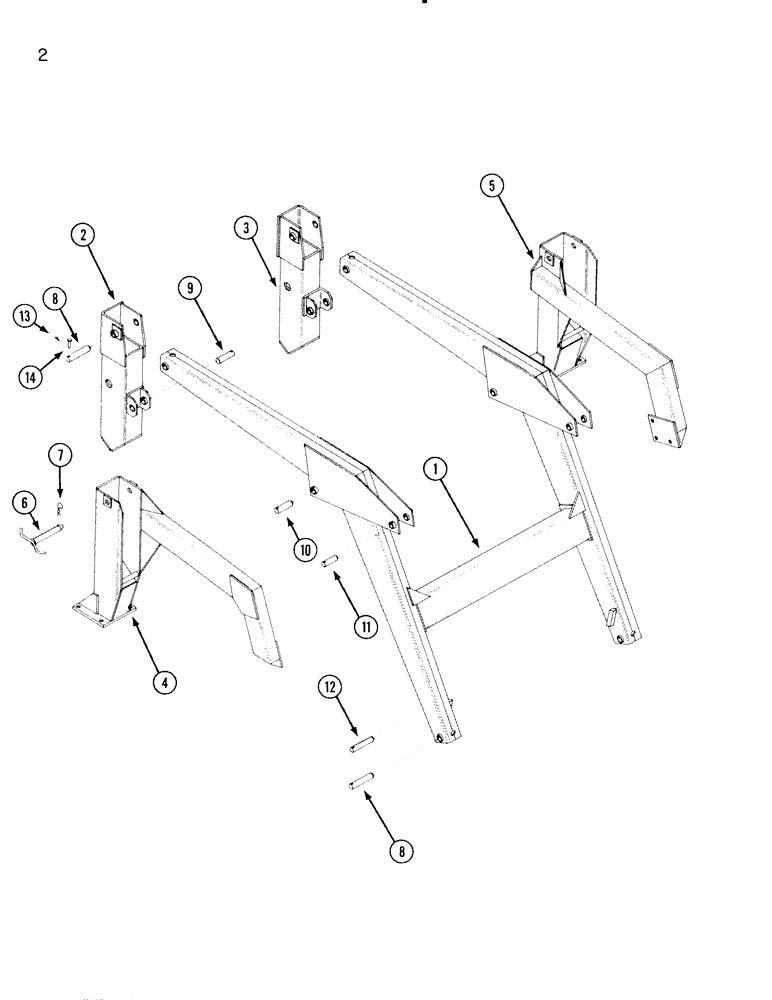

Запчасти Case IH 54L (02) - MAINFRAME, PEDESTAL, SUBFRAME AND PINS (82) - FRONT LOADER & BUCKET

1

T58046

FRAME

- main

1шт.

2

T58050

PEDESTAL

- right

1шт.

3

T58049

PEDESTAL

- right

1шт.

4

T58048

FRAME

SUBFRAME - right

1шт.

5

T58047

FRAME

SUBFRAME - left

1шт.

6

T58063

PIN

- assembly

2шт.

PIN IS 5 3/4 "

1шт.

7

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), Int, 7/16" x .177"

2шт.

8

T58082

PIN

- 1" x 6-1/2" (25.4 x 165.1 mm)

4шт.

9

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8" x 4-3/8" (28.6 x 111.1 mm)

2шт.

10

T58061

PIN

- 1-1/8" x 6" (28.6 x 152.4 mm)

2шт.

11

T55007

PIN

- 1" x 5-7/8" (25.4 x 149.2 mm)

2шт.

12

T58104

PIN

- 1" x 5" (25.4 x 127.0 mm)

2шт.

13

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

12шт.

14

T50008

PIN

- clevis

12шт.
