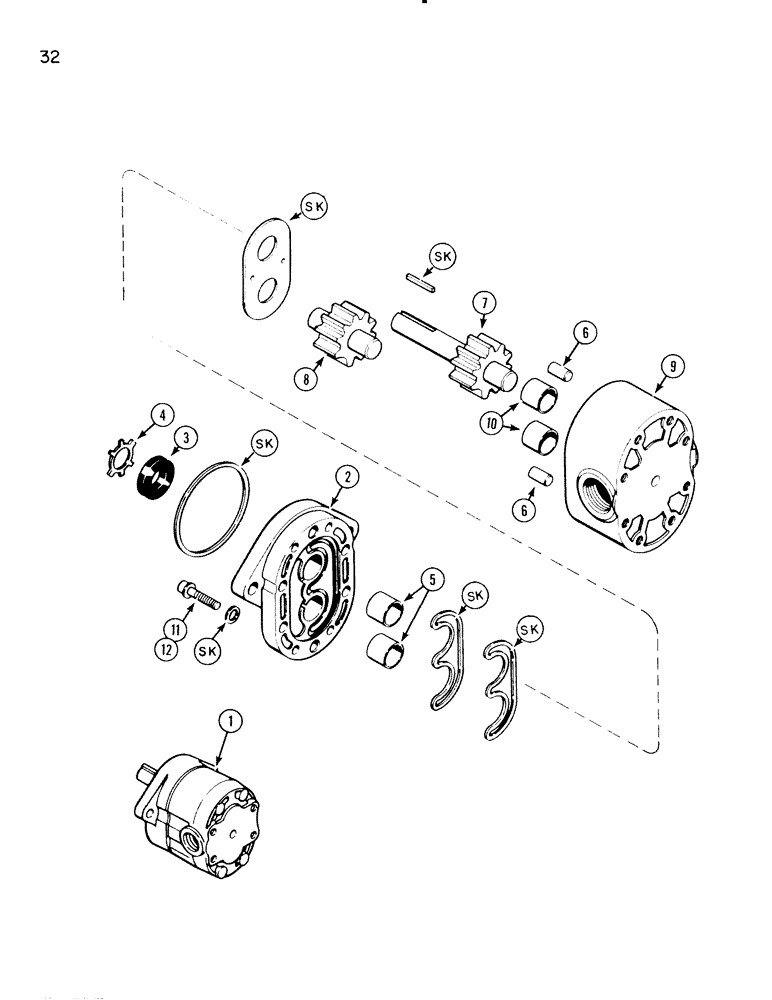

Запчасти Case IH 54L (32) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

T54597

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, Includes: Ref. 2 - 12

1шт.

2

T54605

BODY

- pump, Includes: Ref. 3 - 5

1шт.

3

R22149

SEAL

- oil

1шт.

4

T54615

RETAINER - oil seal

1шт.

5

A34643

BUSHING

BEARING - sleeve

2шт.

6

T54621

PIN,9.52mm OD x 39.62mm L

- dowel

2шт.

sk

SEAL - preload

1шт.

Part of Repair Kit P/N T55042

1шт.

sk

SEAL - load

1шт.

Part of Repair Kit P/N T55042

1шт.

sk

PLATE - wear

1шт.

Part of Repair Kit P/N T55042

1шт.

7

T54609

SHAFT

GEAR - drive

1шт.

8

T54612

SHAFT

GEAR - drive

1шт.

9

T54608

COVER

- pump, Includes: Ref. 10

1шт.

10

A34643

BUSHING

BEARING - sleeve

2шт.

sk

RING - sealing

1шт.

Part of Repair Kit P/N T55042

1шт.

11

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

SCREW - 3/8" x 1-1/2" NC socket head

4шт.

sk

WASHER - 9/16 x 25/64" x 16 gauge

4шт.

Part of Repair Kit P/N T55042

1шт.

12

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

SCREW - 5/16 x 1-1/4" NC socket head

4шт.

sk

WASHER - 21/64 x 15/32" x 16 gauge

4шт.

Part of Repair Kit P/N T55042

1шт.

sk

KEY - 3/16 x 1-1/8"

1шт.

Part of Repair Kit P/N T55042

1шт.

T55042

KIT

- repair (all Refs. marked with an SK)

1шт.
