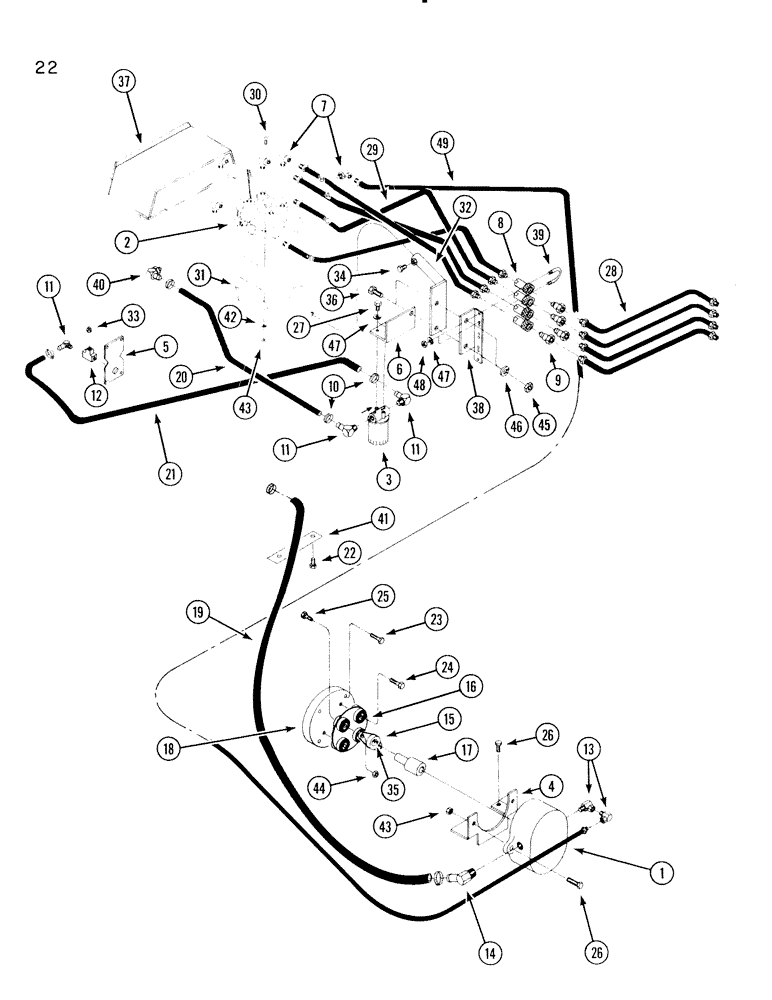

Запчасти Case IH 54L (22) - FRONT PUMP 1190 AND 1194 (35) - HYDRAULIC SYSTEMS

T54597

PUMP, HYDRAULIC

PUMP - front (see Figure 33)

1шт.

2

T57939

VALVE

- two spool (see Figure 21)

1шт.

3

T63215

FILTER

- assembly (see Figure 27)

1шт.

4

T57945

MOUNTING PARTS

MOUNT - pump

1шт.

5

T57933

COVER

- return

1шт.

6

T58097

ANGLE

- filter mount

1шт.

7

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

FITTING - 90 deg. x 7/8 o-ring x 1/2" pipe

5шт.

8

H049718

COUPLER - female

4шт.

9

H049726

COUPLER - male

4шт.

10

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

6шт.

11

T54580

FITTING - 90 deg. x hosebarb x 3/4 pipe

3шт.

12

T57936

FITTING

- tee 3/4" pipe

1шт.

13

T50083

FITTING - 90 deg. x 1/2" pipe

2шт.

14

T57936

FITTING

- 45 deg. x hose barb

1шт.

15

T54573

PIN

COUPLER - flange

1шт.

SHOULD READ T54576

1шт.

16

T10633

COUPLING

COUPLER - flex

1шт.

17

T57946

SHAFT

- drive

1шт.

MEASURES 3.437"

1шт.

18

T57947

ADAPTER

COUPLER - tractor

1шт.

19

T57-943

HOSE - 1 x 72" (25.4 x 1828.8 mm)

1шт.

20

54600

HOSE - 3/4 x 36" (19.1 x 914.4 mm)

1шт.

21

54602

HOSE - 3/4 x 84" (19.1 x 2133.6 mm)

1шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

23

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

24

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

25

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

58

T58089

HOSE ASSY.

HOSE - 3/8 x 54" (9.5 x 1371.6 mm)

4шт.

29

T58092

HYDRAULIC HOSE,36.00"

4шт.

30

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

31

T57995

MOUNTING PARTS

MOUNT - upper valve

1шт.

32

T58095

MOUNTING PARTS

MOUNT - lower

1шт.

33

221-1005

PLUG - 3/4" pipe

1шт.

34

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

35

T62223

KEY - square

2шт.

36

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

37

T58094

COVER

- valve

1шт.

38

T58091

MOUNTING PARTS

MOUNT - quick coupler

1шт.

39

A66788

CLAMP

BOLT - 1/4" U

4шт.

40

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

- 90 deg. hosebarb x o-ring

1шт.

41

T57935

BAR

HANGER - hose

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

44

9635082

NUT,5/16" - 18, Gr 5

2шт.

45

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

14шт.

48

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

49

T58098

HOSE

- 1/2 x 96" (12.7 x 2438.4 mm)

1шт.
