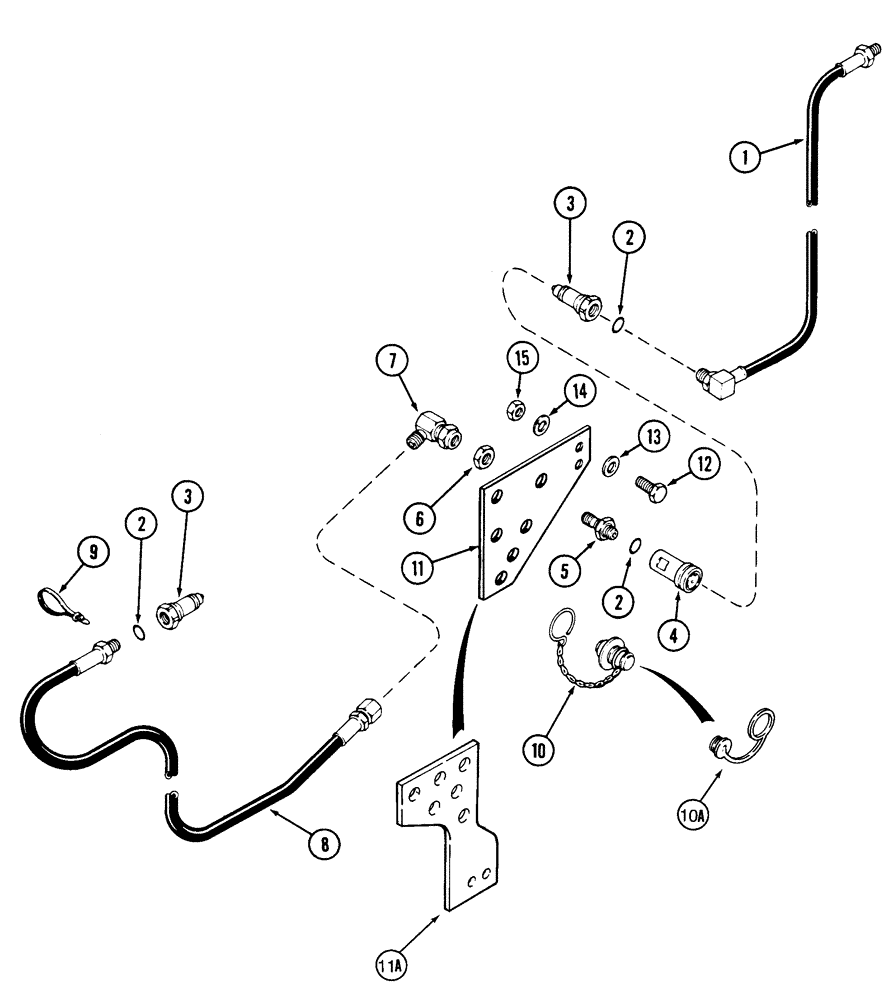

Запчасти Case IH 520 (8-08) - AUXILIARY VALVE HYDRAULICS, MID-MOUNT HOSE KIT (08) - HYDRAULICS

1

1985055C1

HOSE

3/8 (10) ID x 60 inch (1524 mm) long

4шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

12шт.

3

1272399C2

QUICK MALE COUPLING

self-sealing, male, 7/8 inch NF

8шт.

4

1272400C1

COUPLING

self-sealing, female

4шт.

5

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER straight 7/8-14 inch flare x bulkhead flare

4шт.

6

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

4шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

4шт.

8

1985056C1

HOSE

3/8 (10) ID x 130 inch (3302 mm) long

4шт.

9

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

4шт.

10

T57615

PLUG

coupler dust, if used

4шт.

10a

195608A1

CAP

PLUG coupler dust, if used

4шт.

11

105072A2

PLATE

coupler mounting, 6-cylinder tractor

1шт.

11a

197159A1

PLATE

coupler mounting, 4-cylinder tractor

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

13

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

2шт.

1985078C1

KIT

coupler tag, color-coded

4шт.
