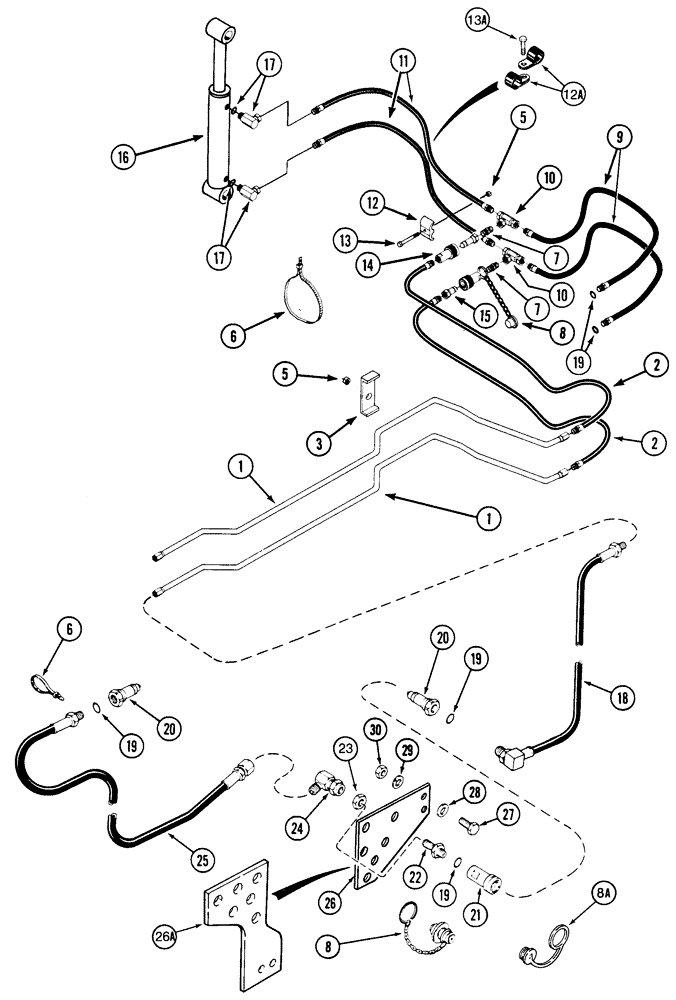

Запчасти Case IH 520 (8-06) - GRAPPLE HYDRAULICS (08) - HYDRAULICS

1

1985006C1

HYD TUBE,0.5" OD

grapple, raise-lower

2шт.

2

1985067C1

HOSE

3/8 (10) ID x 72 inch (1829 mm) long, raise-lower

2шт.

3

851448C1

CLAMP

tube

1шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

5

231-1446

NUT,3/8" - 16, Gr 5

5шт.

6

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

10шт.

7

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE hex, 1/2 PT x 1-7/8 inch

2шт.

8

T57615

PLUG

coupler dust, if used

4шт.

8a

195608A1

CAP

PLUG coupler dust, if used

4шт.

9

1985065C1

HOSE

3/8 (10) ID x 37-1/2 inch (953 mm) long

2шт.

10

218-1602

UNION

TEE, 1/2 inch female PT

2шт.

11

1985066C1

HOSE

3/8 (10) ID x 32-1/2 inch (825 mm) long

2шт.

12

1985061C1

INSERT

CLAMP plastic

2шт.

12a

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Hose

2шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13a

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

hex, 3/8 NC x 1 inch

2шт.

14

H49718

COUPLING

self-sealing, female

2шт.

15

H49726

PUSH-PULL COUPLING

self-sealing, male

2шт.

16

T57744

CYLINDER

ASSY., 2-1/2 (64) ID x 8-3/4 inch (222 mm) stroke grapple, see Figure 8-24

2шт.

17

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

ELBOW, 90°, 3/4-16 adj O-ring x 1/2 inch swivel str thread

4шт.

18

1985055C1

HOSE

3/8 (10) ID x 60 inch (1524 mm) long

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.

20

1272399C2

QUICK MALE COUPLING

self-sealing, male, 7/8 inch NF

4шт.

21

1272400C1

COUPLING

self-sealling, female

2шт.

22

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

ADAPTER straight ,7/8-14 inch flare x bulkhead flare

2шт.

23

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

24

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

25

1985056C1

HOSE

3/8 (10) ID x 130 inch (3302 mm) long

2шт.

26

105072A2

PLATE

coupler mounting, 6-cylinder tractor

1шт.

26a

197159A1

PLATE

coupler mounting, 4-cylinder tractor

1шт.

27

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

28

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

30

425-108

NUT,1/2" - 13, Gr 5

2шт.

1985078C1

KIT

coupler tag, color-coded

1шт.
