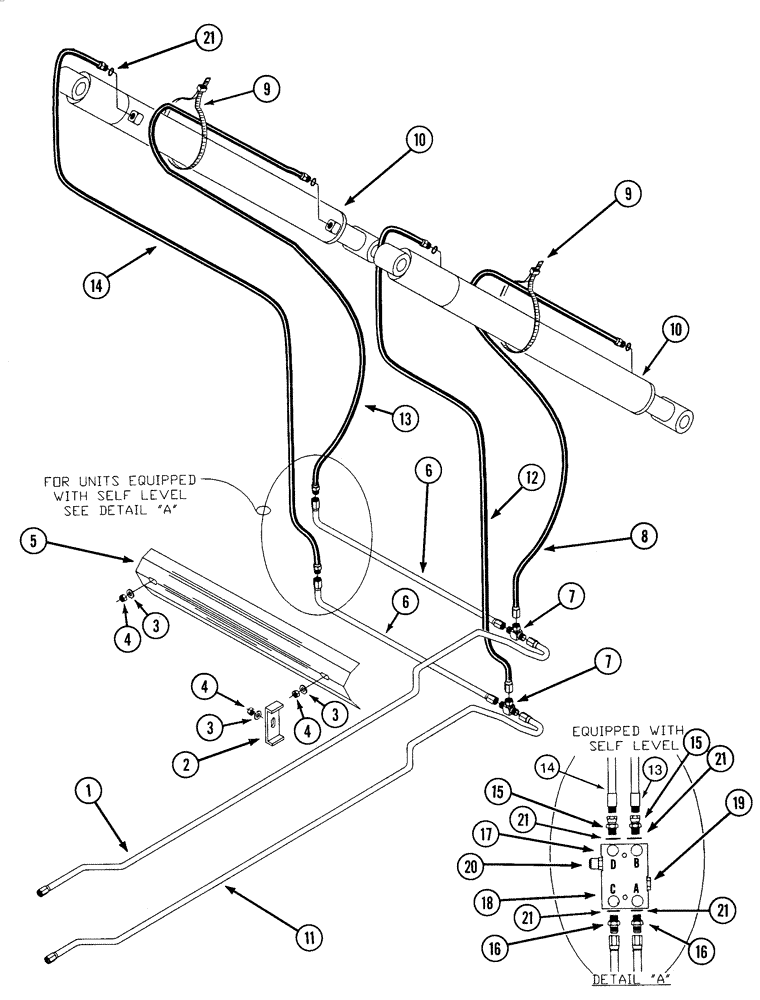

Запчасти Case IH 520 (8-04) - BUCKET HYDRAULICS (08) - HYDRAULICS

1

1985005C1

HYD TUBE,0.5" OD

bucket rollback

1шт.

2

1985012C1

CLAMP

tube

2шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

4

231-1446

NUT,3/8" - 16, Gr 5

4шт.

5

1985014C1

COVER

tube

1шт.

6

1985007C1

HYD TUBE,0.5" OD

bucket, front

2шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 inch swivel branch x flare x flare

2шт.

8

1985017C1

HOSE

3/8 (10) ID x 44 inch (1118 mm) long, bucket rollback

1шт.

9

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

2шт.

10

105064A1

CYLINDER,Double Acting, 44.45mm Rod, 647.7mm Stroke

ASSY., 3 (76) ID x 25-1/2 inch (648 mm) stroke bucket, see Figure 8-22

2шт.

11

1985003C1

HYD TUBE,0.5" OD

bucket dump

1шт.

12

1985018C1

HOSE

3/8 (10) x 28 inch (711 mm) long, bucket dump

1шт.

13

1540350C1

HOSE

3/8 (10) ID x 51-1/2 inch (1308 mm) long

1шт.

14

1540355C1

HOSE

3/8 (10) ID x 36 inch (914 mm) long

1шт.

15

1327736C1

ELBOW

ADAPTER straight, special female x O-ring boss

2шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight 3/4-16 inch flare x O-ring boss

2шт.

17

1540354C1

VALVE

ASSY., double relief RC, Includes: Ref. 18 - 20

1шт.

18

1540360C1

VALVE

BODY

1шт.

19

129514A1

PLUG

ASSY., relief, component parts are not serviced separately

1шт.

20

1540361C1

VALVE

RELIEF, 3200 psi O-ring boss

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

10шт.
