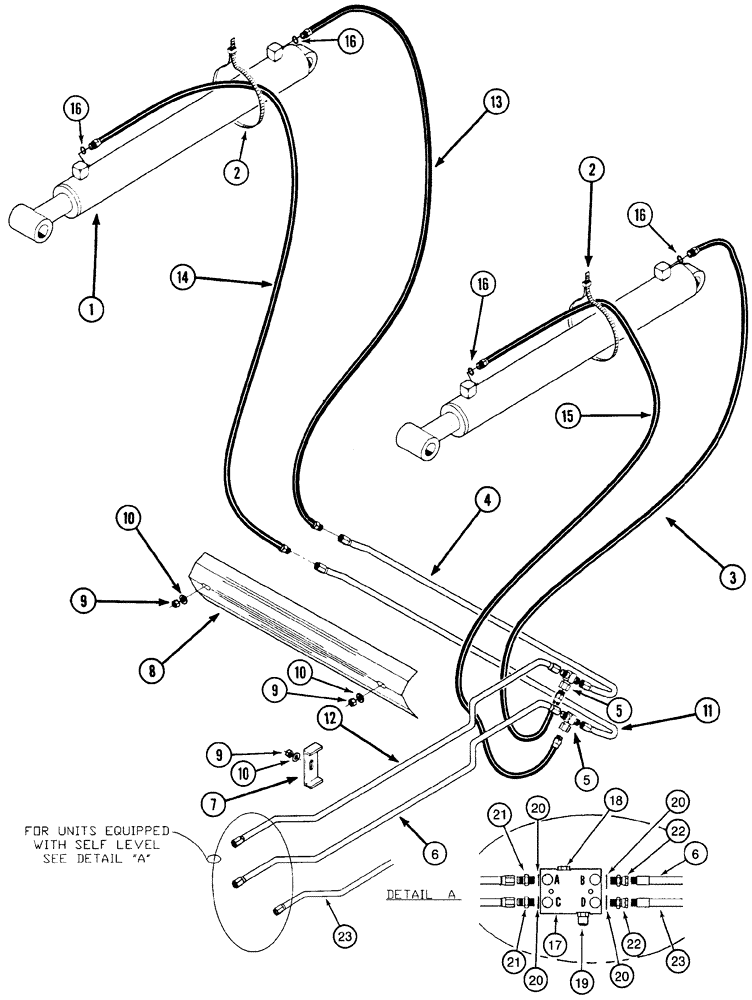

Запчасти Case IH 520 (8-02) - LOADER LIFT HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSY., lift, see Figure 8-20

2шт.

2

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP tie

2шт.

3

1985021C1

HOSE

3/8 (10) ID x 25 inch (635 mm) long, right lift cylinder, raise

1шт.

4

1985001C1

HYD TUBE,0.5" OD, 940 mm Length

front, raise

1шт.

5

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4-16 inch swivel branch x flare x flare

2шт.

6

1985002C1

HYD TUBE,0.5" OD

loader, lower

1шт.

For units with self-leveling, see Detail A.

1шт.

7

1985012C1

CLAMP

tube

2шт.

8

1985014C1

COVER

tube

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

11

1985000C1

HYD TUBE,0.5" OD

front, lower

1шт.

12

1985004C1

HYD TUBE,0.5" OD

loader, front

1шт.

13

1985022C1

HOSE

3/8 (10) ID x 22 inch (559 mm) long, left lift cylinder, raise

1шт.

14

1540350C1

HOSE

3/8 (10) ID x 51-1/2 inch (1308 mm) long, left lift cylinder, lower

1шт.

15

105068A1

HOSE ASSY.

3/8 (10) ID x 51-1/2 inch (1308 mm) long, right lift cylinder, raise

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8шт.

T58169

VALVE

ASSY., self-leveling crossover relief, Includes: Ref. 17 - 19

1шт.

17

T58170

BODY

VALVE crossover

1шт.

18

D54590

PLUG

includes 237-6010 and 238-6015 O-rings

1шт.

19

T58171

PLUG

RELIEF, 1900 psi

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

21

105029A1

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, special 3/4 JIC x 7/8 O-ring

2шт.

22

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss

2шт.

23

REF

INSTRUCTION

TUBE bucket dump, see Ref. 11 on Figure 8-06

1шт.

For units with self-leveling, see Detail A.

1шт.
