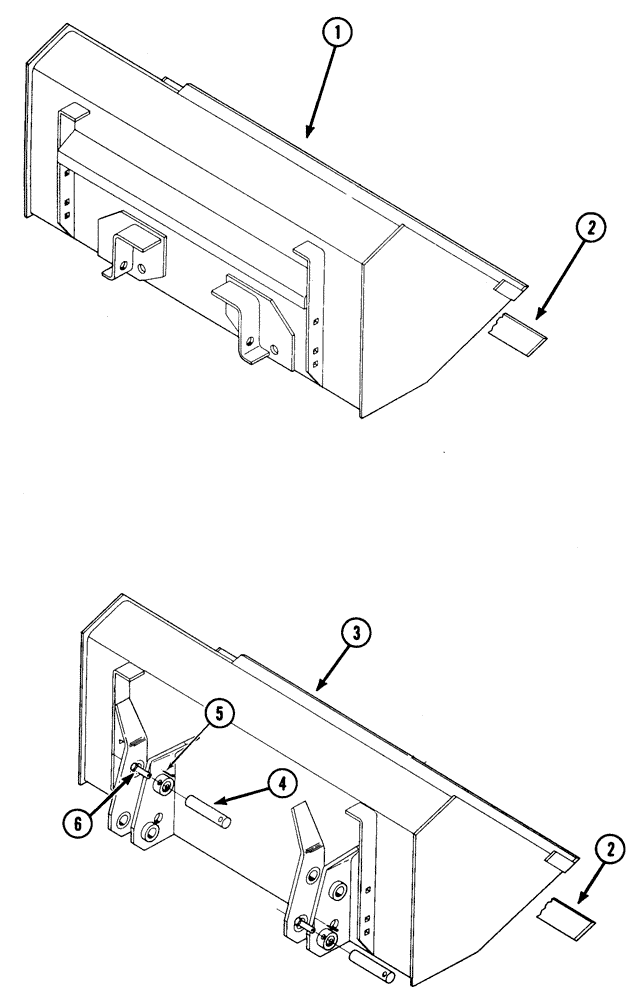

Запчасти Case IH 520 (9-20) - MATERIAL BUCKET, QUICK ATTACH TYPE / STANDARD TYPE (09) - CHASSIS/ATTACHMENTS

1

1985062C3

BUCKET

ASSY., loader, heavy duty, order from machinery price list, 96 inch (2438 mm) wide

1шт.

2

1540351C1

EDGE, CUTTING

3/4 x 4 x 97-1/2 inch

1шт.

2

1540351C1

EDGE, CUTTING

3/4 x 4 x 97-1/2 inch, standard type

1шт.

3

1985074C3

BUCKET

ASSY., loader, heavy duty, order from machinery price list, 96 inch (2438 mm) wide, standard type

1шт.

4

1985029C1

PIN,29mm OD x 187mm L

pivot, 1-1/8 x 7-1/4 inch, standard type

4шт.

5

432-612

COTTER PIN,3/32" x 3/4"

Standard type

4шт.

6

27-6225

CLEVIS PIN,3/8" x 2 1/4"

clevis, hardened, 3/8 x 2-1/4 inch, standard type

4шт.
