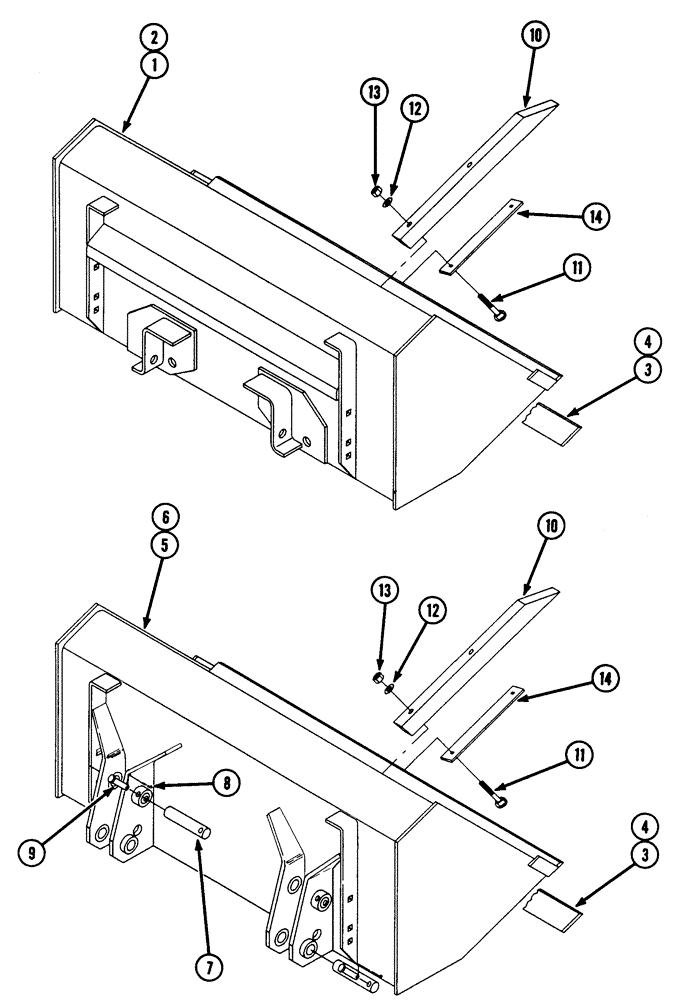

Запчасти Case IH 520 (9-18) - MATERIAL BUCKET, QUICK ATTACH TYPE/STANDARD ATTACH TYPE / BUCKET TINES, QUICK ATTACH & STANDARD TYPE (09) - CHASSIS/ATTACHMENTS

1

1985058C3

BUCKET ASSY., loader, heavy duty, order from machinery price list, 84 inch (2134 mm) wide

1шт.

2

105020A2

BUCKET

ASSY., loader, general purpose, order from machinery price list, 84 inch (2134 mm) wide

1шт.

3

1985301C2

BLADE

EDGE cutting, 3/4 x 4 x 73-1/2 inch, if used

1шт.

4

1985302C2

BLADE

EDGE cutting 3/4 x 4 x 85-1/2 inch

1шт.

3

1985301C2

BLADE

EDGE cutting 3/4 x 4 x 73-1/2 inch, standard attach type

1шт.

4

1985302C2

BLADE

EDGE cutting 3/4 x 4 x 85-1/2 inch, standard attach type

1шт.

5

1985072C2

BUCKET ASSY., loader, heavy duty, order from machinery price list, 72 inch (1829 mm) wide, standard attach type

1шт.

6

1985073C3

BUCKET

ASSY., loader, heavy duty, order from machinery price list, 84 inch (2134 mm) wide, standard attach type

1шт.

6

105021A1

BUCKET

ASSY., loader, general purpose, order from machinery price list, 84 inch (2134 mm) wide, standard attach type

1шт.

7

1985029C1

PIN,29mm OD x 187mm L

pivot, 1-1/8 x 7-1/4 inch, standard attach type

4шт.

8

432-612

COTTER PIN,3/32" x 3/4"

Standard attach type

4шт.

9

427-6225

CLEVIS PIN,3/8" x 2 1/4"

hardened, 3/8 x 2-1/4 inch, standard attach type

4шт.

10

T51043

TINE

84 inch bucket, quick attach and standard type

10шт.

11

419-3648

PLOW BOLT,#3, 3/8" - 16 x 3", Gr 5

3/8 NC x 3 inch, quick attach and standard type

20шт.

12

492-11038

LOCK WASHER,3/8"

Quick attach and standard type

20шт.

13

425-106

NUT,3/8"-16, Cl 5

Quick attach and standard type

20шт.

14

1540357C1

BAR

doubler tine reinforcing, quick attach and standard type

10шт.
