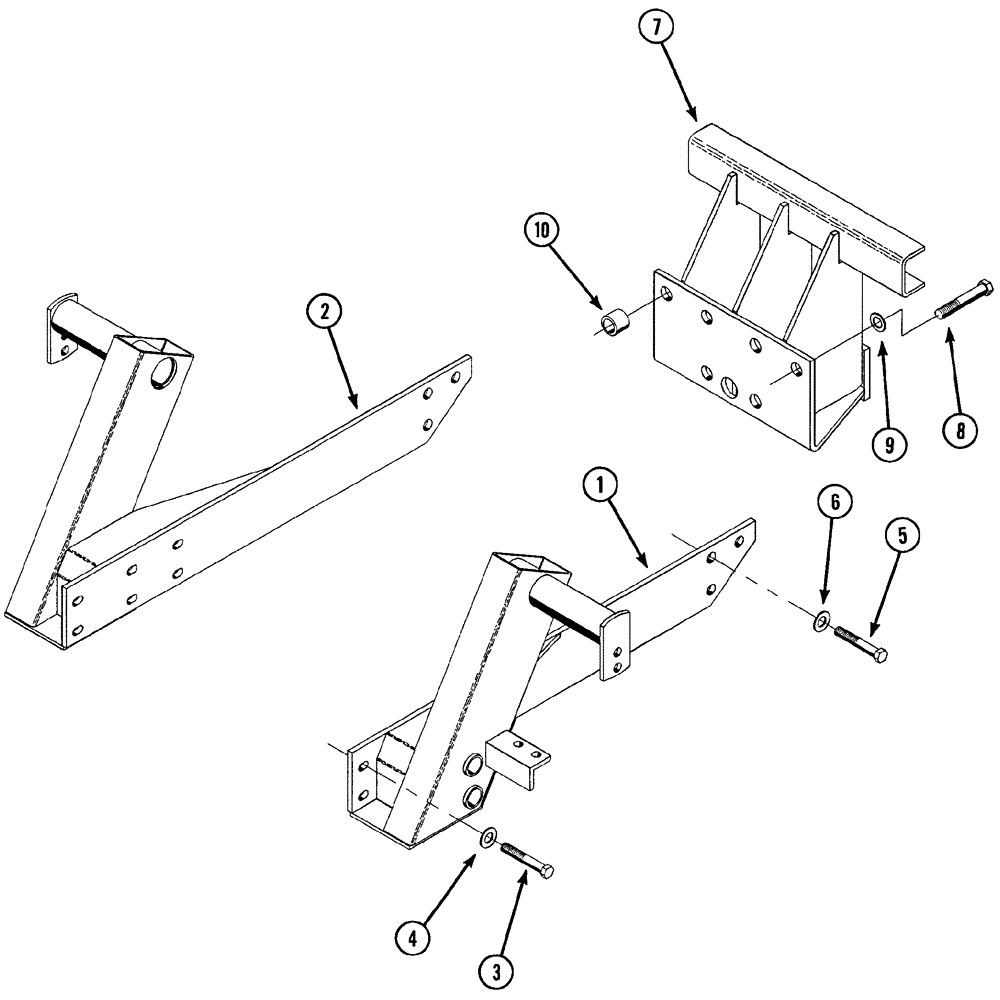

Запчасти Case IH 520 (9-14) - MOUNTING FRAME AND SUPPORT, TRACTORS WITHOUT FRONT HITCH, 5130, 5140, 5230, 5240, 5250 (09) - CHASSIS/ATTACHMENTS

105044A1

MOUNTING ASSY., loader, order from machinery price list, Includes: Ref. 1 - 12

1шт.

1

105030A1

FRAME

rear, right-hand

1шт.

2

105031A1

FRAME

rear, left-hand

1шт.

3

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

12шт.

4

495-51066

WASHER,9/16" x 1 1/4" x .1"

flat, 21/32 x 1-1/4 x 3/32 inch

12шт.

5

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

6шт.

6

495-11081

WASHER,3/4", SAE

6шт.

7

105032A1

BRACKET

front mount

1шт.

8

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

Use with front hitch bolster

6шт.

8

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

Use with non-front hitch bolster

6шт.

9

495-11081

WASHER,3/4", SAE

6шт.

10

1980663C1

SPACER

front mount

6шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

Not shown

6шт.

12

429-108

NUT,1/2"-13, G8

hex, 1/2 inch NC, grade 8, not shown

6шт.
