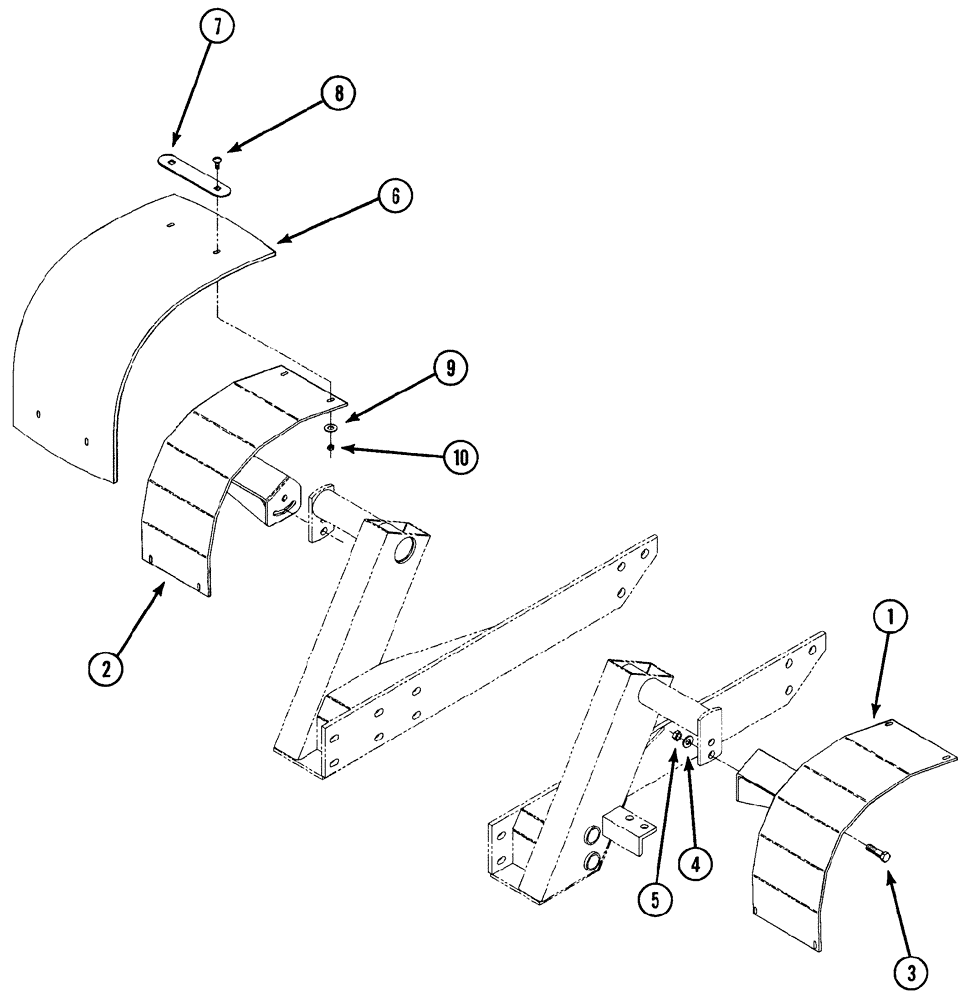

Запчасти Case IH 520 (9-10) - FENDER RELOCATOR (09) - CHASSIS/ATTACHMENTS

1

105024A1

BRACKET

fender mount, right-hand, if used

1шт.

2

105025A1

BRACKET

fender mount, left-hand, if used

1шт.

3

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

4

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

5

231-4118

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

4шт.

6

1531382C2

FENDER ASSY.

loader, if used

2шт.

7

1533795C1

LARGE PLATE

PLATE, LARGE BAR fender, if used

4шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

10

231-4145

NUT,5/16"-18, GB

8шт.
