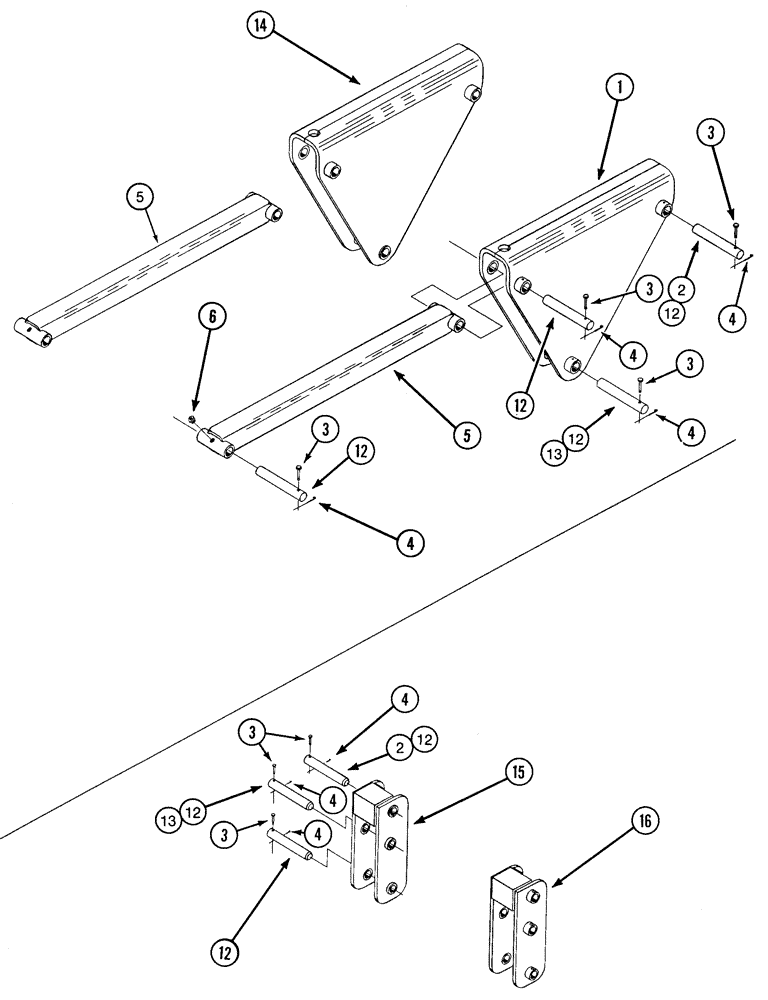

Запчасти Case IH 520 (9-06) - LINKAGE, SELF-LEVELING / STANDARD (09) - CHASSIS/ATTACHMENTS

1

105027A1

PLATE

LINK right, self-leveling

1шт.

2

1985031C1

PIN

pivot, 1-1/8 x 6-5/8 inch, if used , may be replaced with Ref. 12

2шт.

3

427-6225

CLEVIS PIN,3/8" x 2 1/4"

hardened, 3/8 x 2-1/4 inch

8шт.

4

432-612

COTTER PIN,3/32" x 3/4"

8шт.

5

105026A1

LINK ASSY.

box

2шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

12

1985029C1

PIN,29mm OD x 187mm L

pivot, 1-1/8 x 7-1/4 inch (4-8)

4шт.

13

1985030C1

PIN

pivot, 1-1/8 x 6-7/8 inch, if used, may be replaced with Ref. 12

2шт.

14

105028A1

PLATE

LINK left, self leveling

1шт.

2

1985031C1

PIN

pivot, 1-1/8 x 6-5/8 inch, standard

2шт.

3

427-6225

CLEVIS PIN,3/8" x 2 1/4"

hardened, 3/8 x 2-1/4 inch

8шт.

4

432-612

COTTER PIN,3/32" x 3/4"

8шт.

12

1985029C1

PIN,29mm OD x 187mm L

pivot, 1-1/8 x 7-1/4 inch

2шт.

13

1985030C1

PIN

pivot 1-1/8 x 6-7/8 inch

2шт.

15

105109A1

LINK

left

1шт.

16

105108A1

LINK

right

1шт.
